Super-types:	Asset < UnderlyingAsset (by extension) < SimpleCreditDefaultSwap (by extension)
Sub-types:	None

Name	SimpleCreditDefaultSwap
Used by (from the same schema document)	Element simpleCreditDefaultSwap
Abstract	no

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<instrumentId> InstrumentId </instrumentId> [1..*]

<description> xsd:string </description> [0..1]

'The long name of a security.'

<currency> Currency </currency> [0..1]

'The currency in which an amount is denominated.'

<exchangeId> ExchangeId </exchangeId> [0..1]

<clearanceSystem> ClearanceSystem </clearanceSystem> [0..1]

<definition> ProductReference </definition> [0..1]

'An optional reference to a full FpML product that defines the simple product in greater detail. In case of inconsistency between the terms of the simple product and those of the detailed definition, the values in the simple product override those in the detailed definition.'

Start Choice [1]

<referenceEntity> LegalEntity </referenceEntity> [1]

'The entity for which this is defined.'

<creditEntityReference> LegalEntityReference </creditEntityReference> [1]

'An XML reference a credit entity defined elsewhere in the document.'

End Choice

<term> Interval </term> [1]

'Specifies the term of the simple CD swap, e.g. 5Y.'

<paymentFrequency> Interval </paymentFrequency> [0..1]

'Specifies the frequency at which the swap pays, e.g. 6M.'

</...>

Schema Component Representation

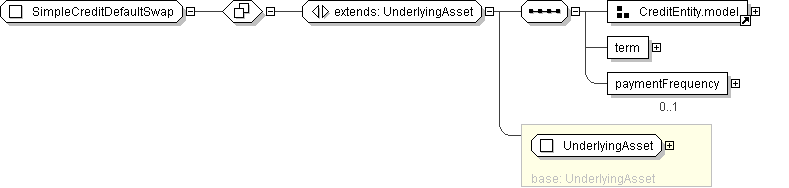

<xsd:complexType name="SimpleCreditDefaultSwap">

<xsd:complexContent>

<xsd:extension base=" UnderlyingAsset ">

<xsd:sequence>

<xsd:group ref=" CreditEntity.model "/>

<xsd:element name="term" type=" Interval "/>

<xsd:element name="paymentFrequency" type=" Interval " minOccurs="0"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
