XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	ContractIdentifier
Used by (from the same schema document)	Complex Type ContractHeader , Complex Type ContractReference
Abstract	no
Documentation	A type defining a contract identifier issued by the indicated party.

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<partyReference> PartyReference </partyReference> [1]

'A pointer style reference to a party identifier defined elsewhere in the document. The party referenced has allocated the contract identifier.'

Start Choice [1]

'Where the legal activity is to agree a contract of variation then the business process should be to modify a contract. This is a contract in its own right and not a version of a previous contract. Where the business process is to replace and supersede a contract then you have a new contract and a contract version should not be used'

<contractId> ContractId </contractId> [1..*]

'A contract id which is not version aware.'

<versionedContractId> VersionedContractId </versionedContractId> [1..*]

'A contract id which is version aware.'

End Choice
</...>

Schema Component Representation

<xsd:complexType name="ContractIdentifier">

<xsd:sequence>

<xsd:element name="partyReference" type=" PartyReference "/>

<xsd:choice>

<xsd:element name="contractId" type=" ContractId " maxOccurs="unbounded"/>

<xsd:element name="versionedContractId" type=" VersionedContractId " maxOccurs="unbounded"/>

</xsd:choice>

</xsd:sequence>

<xsd:attribute name="id" type=" xsd:ID "/>

</xsd:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support.

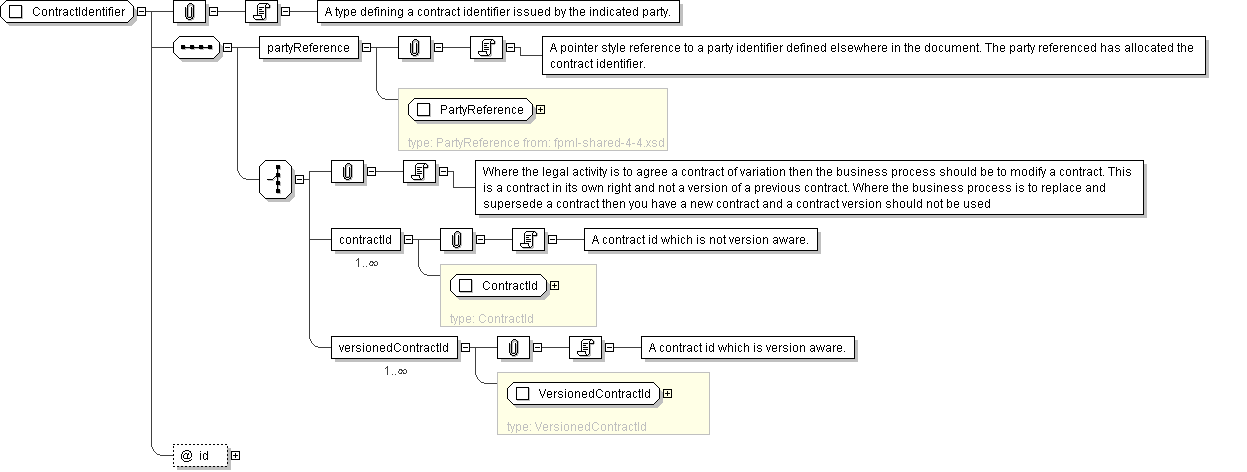

Complex Type: ContractIdentifier
