XML Schema Documentation

Complex Type: TradeId

[Table of contents]

Super-types:	xsd:normalizedString < TradeId (by extension)
Sub-types:	None

Name	TradeId
Used by (from the same schema document)	Complex Type Portfolio , Complex Type TradeIdentifier , Complex Type VersionedTradeId
Abstract	no
Documentation	A trade reference identifier allocated by a party. FpML does not define the domain values associated with this element. Note that the domain values for this element are not strictly an enumerated list.

XML Instance Representation

<...
tradeIdScheme=" xsd:anyURI [1]"
id=" xsd:ID [0..1]

'DEPRECATED'

">
xsd:normalizedString
</...>

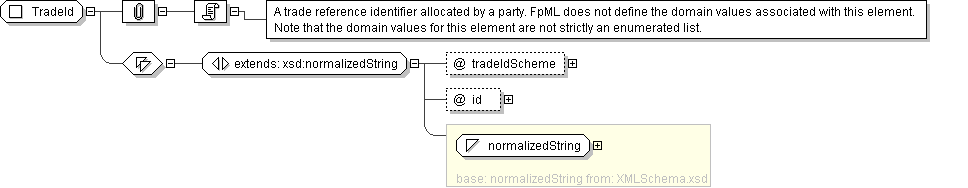

Diagram

Schema Component Representation

<xsd:complexType name="TradeId">

<xsd:simpleContent>

<xsd:extension base=" xsd:normalizedString ">

<xsd:attribute name="tradeIdScheme" type=" xsd:anyURI " use="required"/>

<xsd:attribute name="id" type=" xsd:ID " deprecated="true" deprecatedReason="This attribute has no usage currently in FpML so it will be removed in the next major version."/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
