Super-types:	Money < FxOptionPayout (by extension)
Sub-types:	None

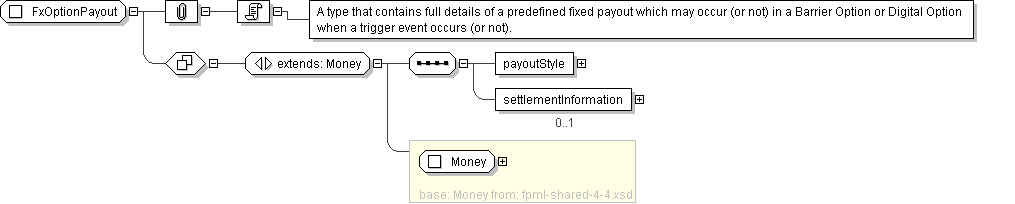

Name	FxOptionPayout
Used by (from the same schema document)	Complex Type FxBarrierOption , Complex Type FxDigitalOption
Abstract	no
Documentation	A type that contains full details of a predefined fixed payout which may occur (or not) in a Barrier Option or Digital Option when a trigger event occurs (or not).

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<currency> Currency </currency> [1]

'The currency in which an amount is denominated.'

<amount> xsd:decimal </amount> [1]

'The monetary quantity in currency units.'

<payoutStyle> PayoutEnum </payoutStyle> [1]

'The trigger event and payout may be asynchonous. A payout may become due on the trigger event, or the payout may (by agreeement at initiation) be deferred (for example) to the maturity date.'

<settlementInformation> SettlementInformation </settlementInformation> [0..1]

'The information required to settle a currency payment that results from a trade.'

</...>

Schema Component Representation

<xsd:complexType name="FxOptionPayout">

<xsd:complexContent>

<xsd:extension base=" Money ">

<xsd:sequence>

<xsd:element name="payoutStyle" type=" PayoutEnum "/>

<xsd:element name="settlementInformation" type=" SettlementInformation " minOccurs="0"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
