XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	QuotedAs
Used by (from the same schema document)	Complex Type FxOptionLeg
Abstract	no
Documentation	A type that describes how the option was quoted.

XML Instance Representation

<...>

<optionOnCurrency> Currency </optionOnCurrency> [1]

'Either the callCurrencyAmount or the putCurrencyAmount defined elsewhere in the document. The currency reference denotes the option currency as the option was quoted (as opposed to the face currency).'

<faceOnCurrency> Currency </faceOnCurrency> [1]

'Either the callCurrencyAmount or the putCurrencyAmount defined elsewhere in the document.The currency reference denotes the face currency as the option was quoted (as opposed to the option currency).'

<quotedTenor> Interval </quotedTenor> [0..1]

'Code denoting the tenor of the option leg.'

</...>

Schema Component Representation

<xsd:complexType name="QuotedAs">

<xsd:sequence>

<xsd:element name="optionOnCurrency" type=" Currency "/>

<xsd:element name="faceOnCurrency" type=" Currency "/>

<xsd:element name="quotedTenor" type=" Interval " minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support.

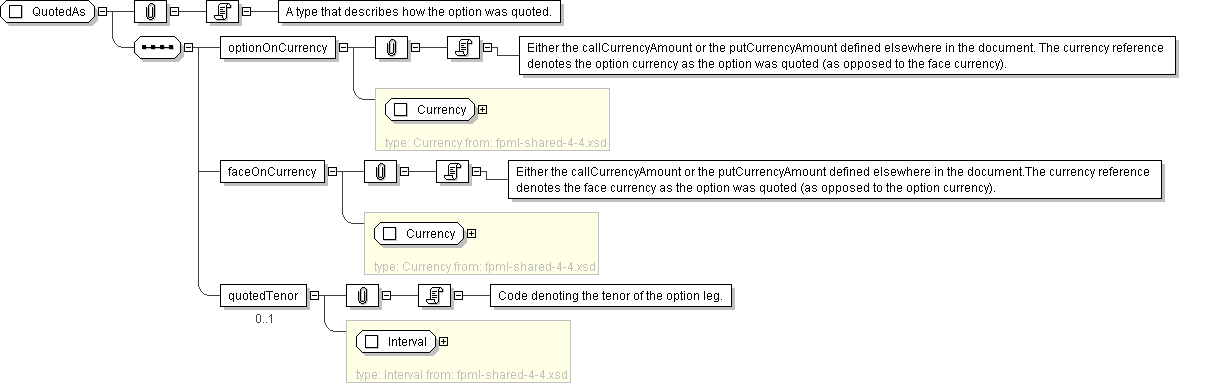

Complex Type: QuotedAs
