XML Schema Documentation

Name	FacilityNoticeDetails.model
Used by (from the same schema document)	Complex Type FacilityNotice , Complex Type LoanContractNotice

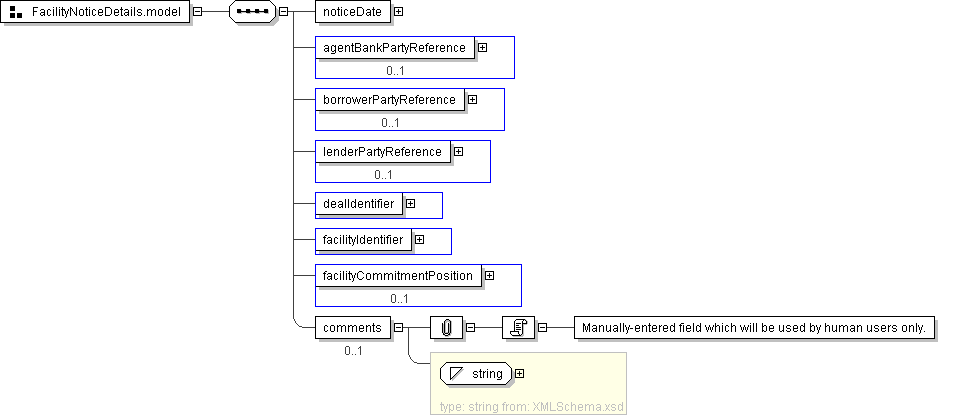

XML Instance Representation

<noticeDate> xsd:date </noticeDate> [1]

<agentBankPartyReference> PartyReference </agentBankPartyReference> [0..1]

<borrowerPartyReference> PartyReference </borrowerPartyReference> [0..1]

<lenderPartyReference> PartyReference </lenderPartyReference> [0..1]

<dealIdentifier> DealIdentifier </dealIdentifier> [1]

<facilityIdentifier> FacilityIdentifier </facilityIdentifier> [1]

<facilityCommitmentPosition> FacilityCommitmentPosition </facilityCommitmentPosition> [0..1]

<comments> xsd:string </comments> [0..1]

'Manually-entered field which will be used by human users only.'

Schema Component Representation

<xsd:group name="FacilityNoticeDetails.model">

<xsd:sequence>

<xsd:element name="noticeDate" type=" xsd:date "/>

<xsd:element name="agentBankPartyReference" type=" PartyReference " minOccurs="0"/>

<xsd:element name="borrowerPartyReference" type=" PartyReference " minOccurs="0"/>

<xsd:element name="lenderPartyReference" type=" PartyReference " minOccurs="0"/>

<xsd:element name="dealIdentifier" type=" DealIdentifier "/>

<xsd:element name="facilityIdentifier" type=" FacilityIdentifier "/>

<xsd:element name="facilityCommitmentPosition" type=" FacilityCommitmentPosition " minOccurs="0"/>

<xsd:element name="comments" type=" xsd:string " minOccurs="0"/>

</xsd:sequence>

</xsd:group>
