XML Schema Documentation

Super-types:	None
Sub-types:	NotificationMessageHeader (by extension) RequestMessageHeader (by extension) ResponseMessageHeader (by extension)

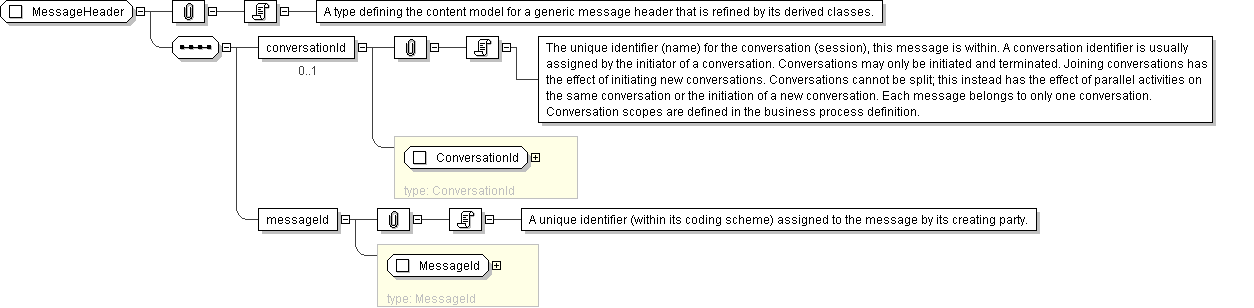

Name	MessageHeader
Abstract	yes
Documentation	A type defining the content model for a generic message header that is refined by its derived classes.

XML Instance Representation

<...>

<conversationId> ConversationId </conversationId> [0..1]

'The unique identifier (name) for the conversation (session), this message is within. A conversation identifier is usually assigned by the initiator of a conversation. Conversations may only be initiated and terminated. Joining conversations has the effect of initiating new conversations. Conversations cannot be split; this instead has the effect of parallel activities on the same conversation or the initiation of a new conversation. Each message belongs to only one conversation. Conversation scopes are defined in the business process definition.'

<messageId> MessageId </messageId> [1]

'A unique identifier (within its coding scheme) assigned to the message by its creating party.'

</...>

Schema Component Representation

<xsd:complexType name="MessageHeader" abstract="true">

<xsd:sequence>

<xsd:element name="conversationId" type=" ConversationId " minOccurs="0"/>

<xsd:element name="messageId" type=" MessageId "/>

</xsd:sequence>

</xsd:complexType>
