XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	AveragingSchedule
Used by (from the same schema document)	Complex Type AveragingPeriod , Complex Type TriggerEvent
Abstract	no
Documentation	Method of generating a series of dates.

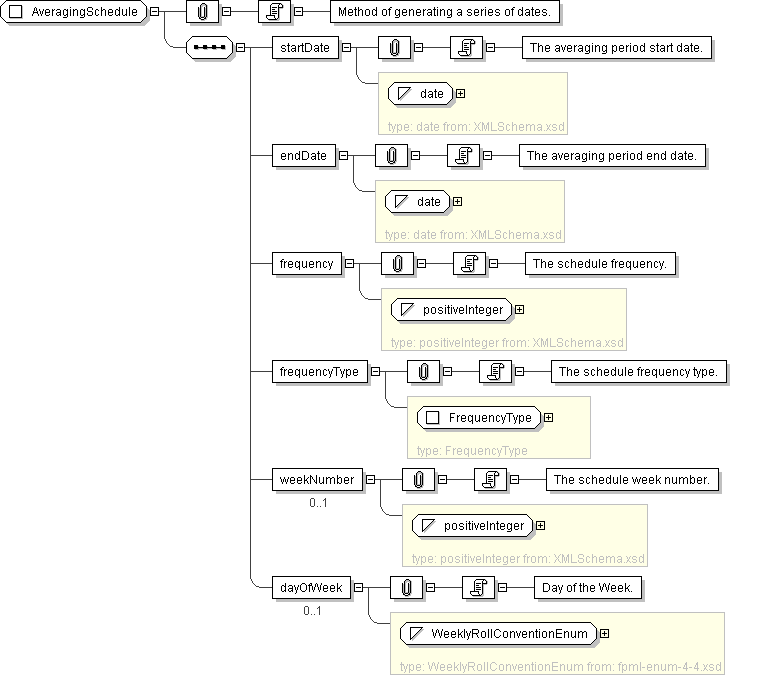

XML Instance Representation

<...>

<startDate> xsd:date </startDate> [1]

'The averaging period start date.'

<endDate> xsd:date </endDate> [1]

'The averaging period end date.'

<frequency> xsd:positiveInteger </frequency> [1]

'The schedule frequency.'

<frequencyType> FrequencyType </frequencyType> [1]

'The schedule frequency type.'

<weekNumber> xsd:positiveInteger </weekNumber> [0..1]

'The schedule week number.'

<dayOfWeek> WeeklyRollConventionEnum </dayOfWeek> [0..1]

'Day of the Week.'

</...>

Schema Component Representation

<xsd:complexType name="AveragingSchedule">

<xsd:sequence>

<xsd:element name="startDate" type=" xsd:date "/>

<xsd:element name="endDate" type=" xsd:date "/>

<xsd:element name="frequency" type=" xsd:positiveInteger "/>

<xsd:element name="frequencyType" type=" FrequencyType "/>

<xsd:element name="weekNumber" type=" xsd:positiveInteger " minOccurs="0"/>

<xsd:element name="dayOfWeek" type=" WeeklyRollConventionEnum " minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>
