XML Schema Documentation

Super-types:	None
Sub-types:	OptionStrike (by extension)

Name	OptionNumericStrike
Abstract	no
Documentation	A type for defining the strike price for an option as a numeric value without currency.

XML Instance Representation

<...>
Start Choice [1]

<strikePrice> xsd:decimal </strikePrice> [1]

'The price or level at which the option has been struck.'

<strikePercentage> xsd:decimal </strikePercentage> [1]

'The price or level expressed as a percentage of the forward starting spot price.'

End Choice
</...>

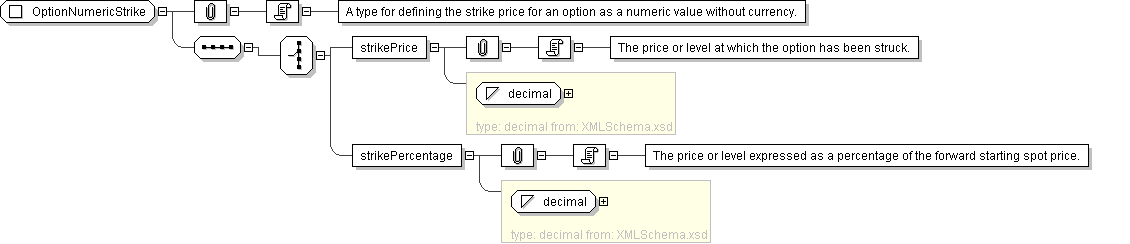

Diagram

Schema Component Representation

<xsd:complexType name="OptionNumericStrike">

<xsd:sequence>

<xsd:choice>

<xsd:element name="strikePrice" type=" xsd:decimal "/>

<xsd:element name="strikePercentage" type=" xsd:decimal "/>

</xsd:choice>

</xsd:sequence>

</xsd:complexType>
