XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	ReportingRoles
Used by (from the same schema document)	Complex Type Position
Abstract	no
Documentation	The roles of the parties in reporting information such as positions.

XML Instance Representation

<...>

<baseParty> PartyReference </baseParty> [1]

'A reference to the party from whose perspective the position is valued, ie. the owner or holder of the position.'

<activityProvider> PartyReference </activityProvider> [0..1]

'A reference to the party responsible for reporting trading activities.'

<positionProvider> PartyReference </positionProvider> [0..1]

'A reference to the party responsible for reporting the position itself and its constituents.'

<valuationProvider> PartyReference </valuationProvider> [0..1]

'A reference to the party responsible for calculating and reporting the valuations of the positions.'

</...>

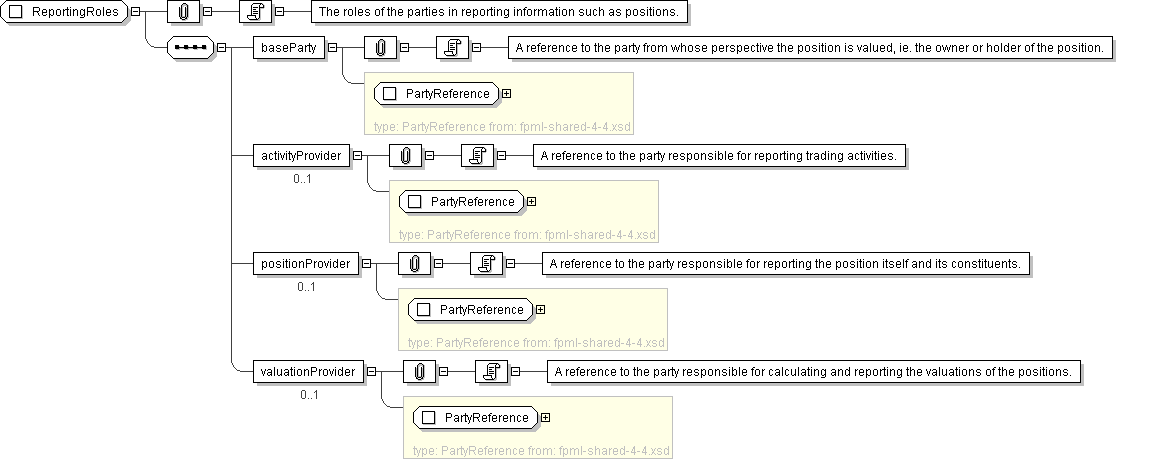

Schema Component Representation

<xsd:complexType name="ReportingRoles">

<xsd:sequence>

<xsd:element name="baseParty" type=" PartyReference "/>

<xsd:element name="activityProvider" type=" PartyReference " minOccurs="0"/>

<xsd:element name="positionProvider" type=" PartyReference " minOccurs="0"/>

<xsd:element name="valuationProvider" type=" PartyReference " minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>
