Element: KeyInfo

[Table of contents]

Name KeyInfo
Type ds:KeyInfoType
Nillable no
Abstract no

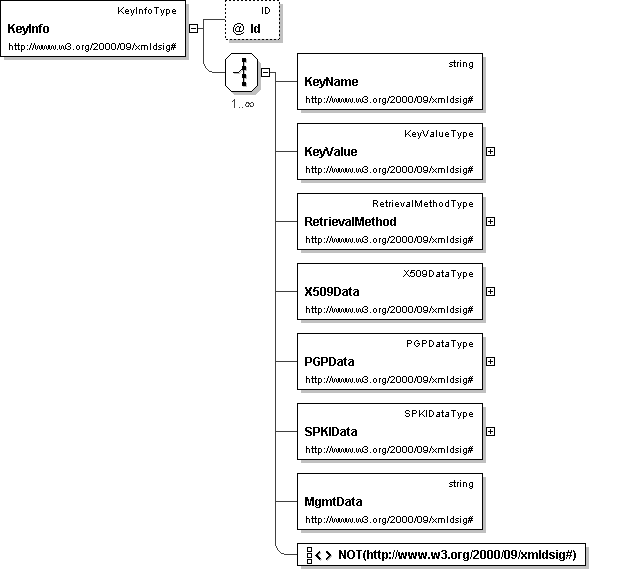

Logical Diagram
element_KeyName element_KeyValue element_RetrievalMethod element_X509Data element_PGPData element_SPKIData element_MgmtData
XML Instance Representation
<ds:KeyInfo
Id="ID [0..1]">
<!-- Mixed content -->
Start Choice [1..*]
<ds:KeyName> ... </ds:KeyName> [1]
<ds:KeyValue> ... </ds:KeyValue> [1]
<ds:RetrievalMethod> ... </ds:RetrievalMethod> [1]
<ds:X509Data> ... </ds:X509Data> [1]
<ds:PGPData> ... </ds:PGPData> [1]
<ds:SPKIData> ... </ds:SPKIData> [1]
<ds:MgmtData> ... </ds:MgmtData> [1]
Allow any elements from a namespace other than this schema's namespace (lax validation). [1]
End Choice
</ds:KeyInfo>

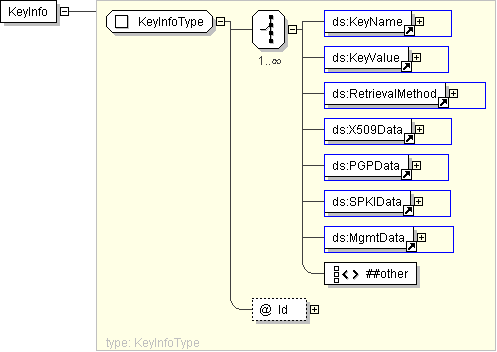

Diagram
element_KeyName element_KeyValue element_RetrievalMethod element_X509Data element_PGPData element_SPKIData element_MgmtData
Schema Component Representation
<element name="KeyInfo" type=" ds:KeyInfoType "/>
