XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	ActualPrice
Used by (from the same schema document)	Complex Type Price , Complex Type Price
Abstract	no

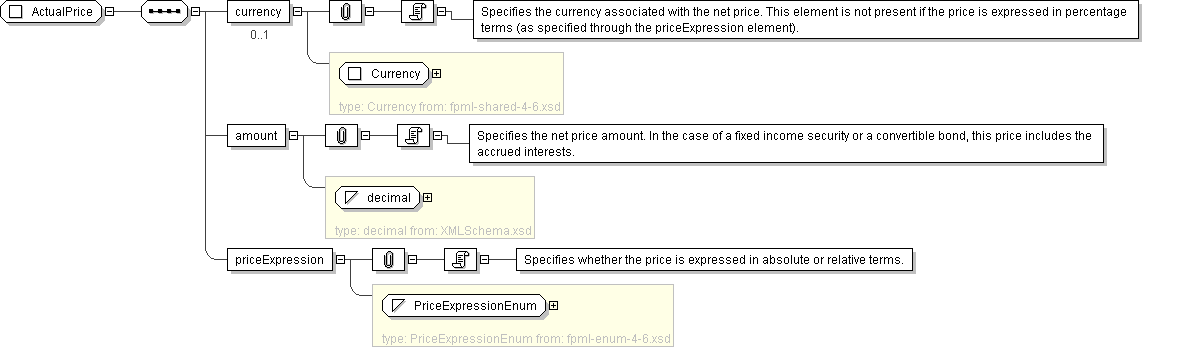

XML Instance Representation

<...>

<currency> Currency </currency> [0..1]

'Specifies the currency associated with the net price. This element is not present if the price is expressed in percentage terms (as specified through the priceExpression element).'

<amount> xsd:decimal </amount> [1]

'Specifies the net price amount. In the case of a fixed income security or a convertible bond, this price includes the accrued interests.'

<priceExpression> PriceExpressionEnum </priceExpression> [1]

'Specifies whether the price is expressed in absolute or relative terms.'

</...>

Schema Component Representation

<xsd:complexType name="ActualPrice">

<xsd:sequence>

<xsd:element name="currency" type=" Currency " minOccurs="0"/>

<xsd:element name="amount" type=" xsd:decimal "/>

<xsd:element name="priceExpression" type=" PriceExpressionEnum "/>

</xsd:sequence>

</xsd:complexType>
