XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	CashSettlementPaymentDate
Used by (from the same schema document)	Complex Type CashSettlement
Abstract	no
Documentation	A type defining the cash settlement payment date(s) as either a set of explicit dates, together with applicable adjustments, or as a date relative to some other (anchor) date, or as any date in a range of contiguous business days.

XML Instance Representation

<...
id=" xsd:ID [0..1]">
Start Choice [1]

<adjustableDates> AdjustableDates </adjustableDates> [1]

'A series of dates that shall be subject to adjustment if they would otherwise fall on a day that is not a business day in the specified business centers, together with the convention for adjusting the date.'

<relativeDate> RelativeDateOffset </relativeDate> [1]

'A date specified as some offset to another date (the anchor date).'

<businessDateRange> BusinessDateRange </businessDateRange> [1]

'A range of contiguous business days.'

End Choice
</...>

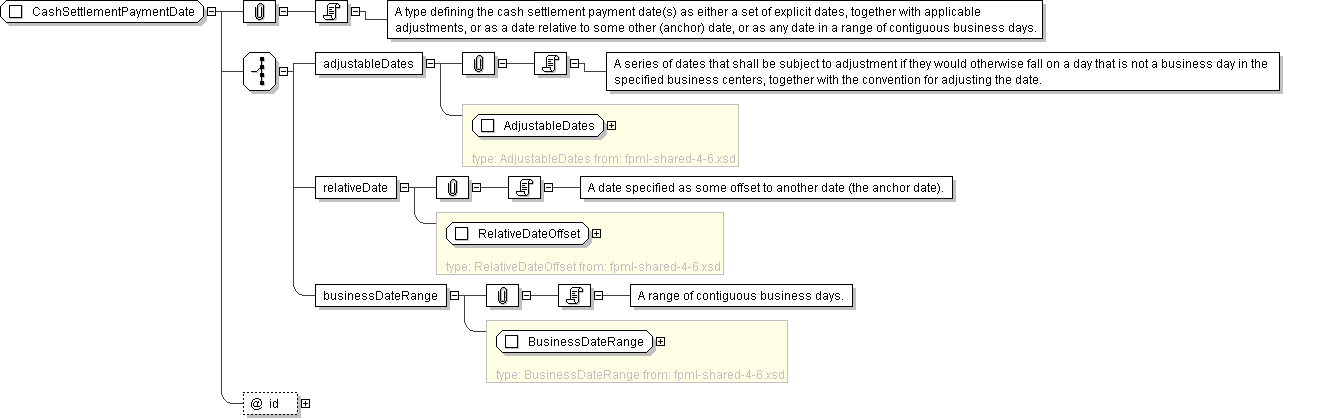

Schema Component Representation

<xsd:complexType name="CashSettlementPaymentDate">

<xsd:choice>

<xsd:element name="adjustableDates" type=" AdjustableDates "/>

<xsd:element name="relativeDate" type=" RelativeDateOffset "/>

<xsd:element name="businessDateRange" type=" BusinessDateRange "/>

</xsd:choice>

<xsd:attribute name="id" type=" xsd:ID "/>

</xsd:complexType>
