XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	BusinessCenterTime
Used by (from the same schema document)	Complex Type AmericanExercise , Complex Type AmericanExercise , Complex Type AmericanExercise , Complex Type BermudaExercise , Complex Type BermudaExercise , Complex Type BermudaExercise , Complex Type EuropeanExercise , Complex Type EuropeanExercise , Complex Type FxSpotRateSource , Complex Type SharedAmericanExercise
Abstract	no
Documentation	A type for defining a time with respect to a business center location. For example, 11:00am London time.

XML Instance Representation

<...>

<hourMinuteTime> HourMinuteTime </hourMinuteTime> [1]

'A time specified in hh:mm:ss format where the second component must be \'00\', e.g. 11am would be represented as 11:00:00.'

<businessCenter> BusinessCenter </businessCenter> [1]

</...>

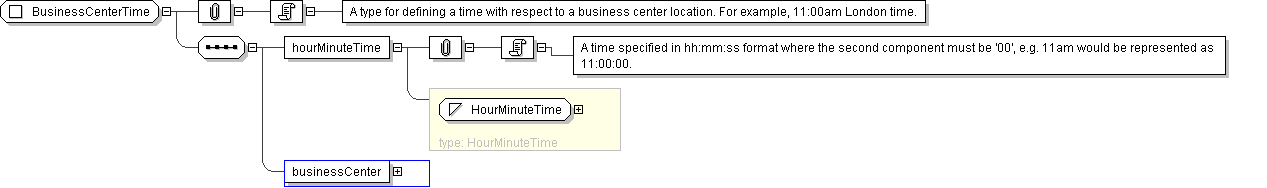

Diagram

Schema Component Representation

<xsd:complexType name="BusinessCenterTime">

<xsd:sequence>

<xsd:element name="hourMinuteTime" type=" HourMinuteTime "/>

<xsd:element name="businessCenter" type=" BusinessCenter "/>

</xsd:sequence>

</xsd:complexType>
