XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	SimplePayment
Abstract	no
Documentation	A complex type to specified payments in a simpler fashion than the Payment type. This construct should be used from the version 4.3 onwards.

XML Instance Representation

<...>

<payerPartyReference> PartyOrAccountReference </payerPartyReference> [1]

'A reference to the party responsible for making the payments defined by this structure.'

<receiverPartyReference> PartyOrAccountReference </receiverPartyReference> [1]

'A reference to the party that receives the payments corresponding to this structure.'

<paymentAmount> Money </paymentAmount> [1]

<paymentDate> AdjustableOrRelativeAndAdjustedDate </paymentDate> [1]

'The payment date. This date is subject to adjustment in accordance with any applicable business day convention.'

</...>

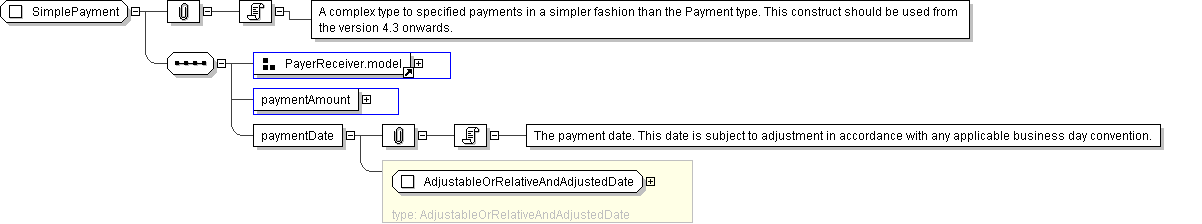

Schema Component Representation

<xsd:complexType name="SimplePayment">

<xsd:sequence>

<xsd:group ref=" PayerReceiver.model "/>

<xsd:element name="paymentAmount" type=" Money "/>

<xsd:element name="paymentDate" type=" AdjustableOrRelativeAndAdjustedDate "/>

</xsd:sequence>

</xsd:complexType>
