XML Schema Documentation

Super-types:	None
Sub-types:	None

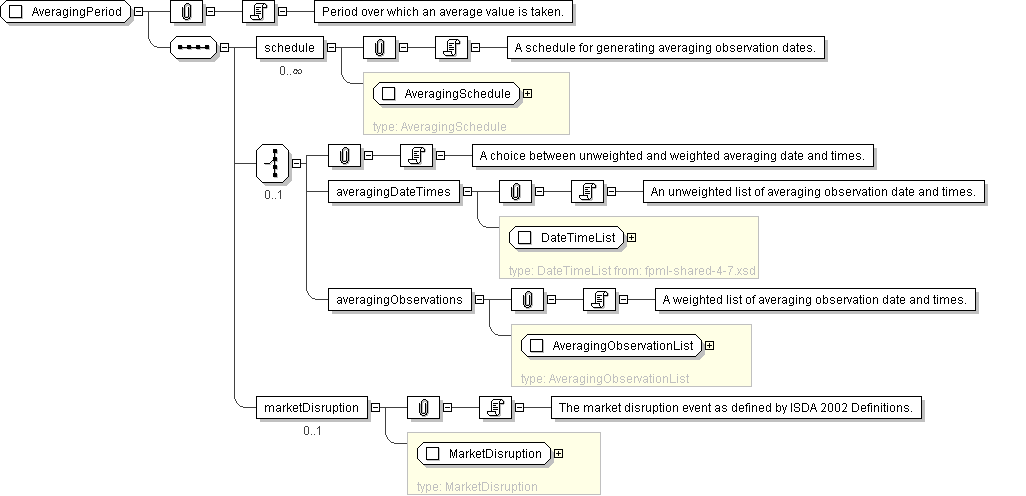

Name	AveragingPeriod
Used by (from the same schema document)	Complex Type Asian , Complex Type Asian
Abstract	no
Documentation	Period over which an average value is taken.

XML Instance Representation

<...>

<schedule> AveragingSchedule </schedule> [0..*]

'A schedule for generating averaging observation dates.'

Start Choice [0..1]

'A choice between unweighted and weighted averaging date and times.'

<averagingDateTimes> DateTimeList </averagingDateTimes> [1]

'An unweighted list of averaging observation date and times.'

<averagingObservations> AveragingObservationList </averagingObservations> [1]

'A weighted list of averaging observation date and times.'

End Choice

<marketDisruption> MarketDisruption </marketDisruption> [0..1]

'The market disruption event as defined by ISDA 2002 Definitions.'

</...>

Schema Component Representation

<xsd:complexType name="AveragingPeriod">

<xsd:sequence>

<xsd:element name="schedule" type=" AveragingSchedule " minOccurs="0" maxOccurs="unbounded"/>

<xsd:choice minOccurs="0">

<xsd:element name="averagingDateTimes" type=" DateTimeList "/>

<xsd:element name="averagingObservations" type=" AveragingObservationList "/>

</xsd:choice>

<xsd:element name="marketDisruption" type=" MarketDisruption " minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>
