XML Schema Documentation

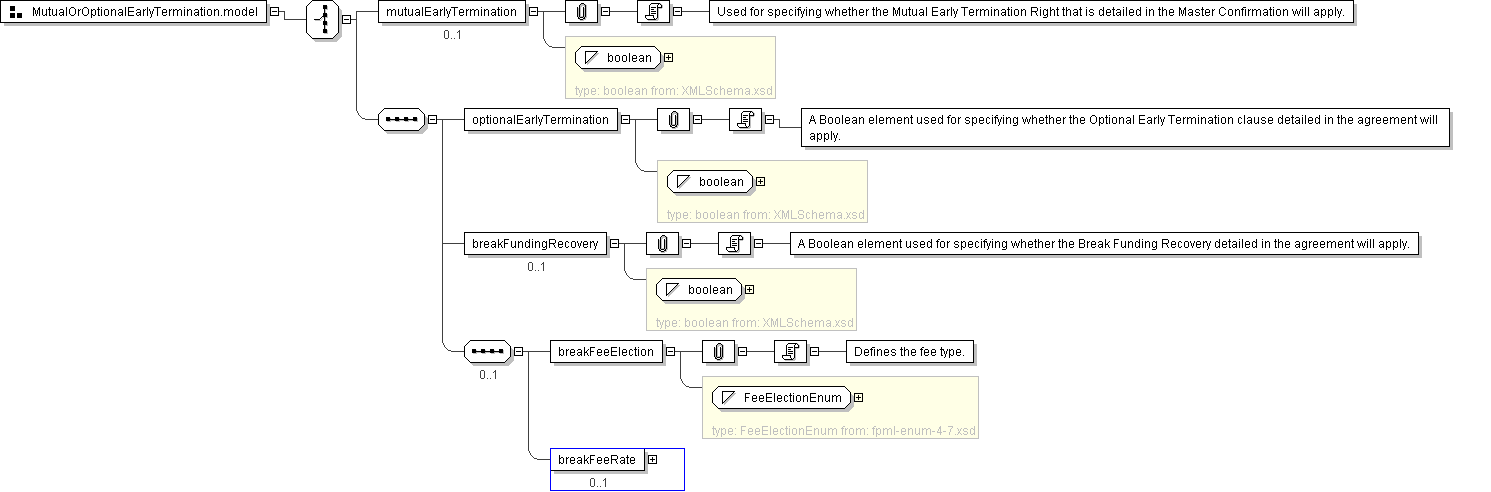

Name	MutualOrOptionalEarlyTermination.model

XML Instance Representation

Start Choice [1]

<mutualEarlyTermination> xsd:boolean </mutualEarlyTermination> [0..1]

'Used for specifying whether the Mutual Early Termination Right that is detailed in the Master Confirmation will apply.'

<optionalEarlyTermination> xsd:boolean </optionalEarlyTermination> [1]

'A Boolean element used for specifying whether the Optional Early Termination clause detailed in the agreement will apply.'

<breakFundingRecovery> xsd:boolean </breakFundingRecovery> [0..1]

'A Boolean element used for specifying whether the Break Funding Recovery detailed in the agreement will apply.'

Start Sequence [0..1]

<breakFeeElection> FeeElectionEnum </breakFeeElection> [1]

'Defines the fee type.'

<breakFeeRate> NonNegativeDecimal </breakFeeRate> [0..1]

End Sequence
End Choice

Schema Component Representation

<xsd:group name="MutualOrOptionalEarlyTermination.model">

<xsd:choice>

<xsd:element name="mutualEarlyTermination" type=" xsd:boolean " minOccurs="0"/>

<xsd:sequence>

<xsd:element name="optionalEarlyTermination" type=" xsd:boolean "/>

<xsd:element name="breakFundingRecovery" type=" xsd:boolean " minOccurs="0"/>

<xsd:sequence minOccurs="0">

<xsd:element name="breakFeeElection" type=" FeeElectionEnum "/>

<xsd:element name="breakFeeRate" type=" NonNegativeDecimal " minOccurs="0"/>

</xsd:sequence>

</xsd:choice>

</xsd:group>
