Name	CommodityCoalProperties.model
Used by (from the same schema document)	Complex Type CoalStandardQuality
Documentation	Items defining the physical attributes of the coal product.

XML Instance Representation

<BTUperLB> CoalAttributeDecimal </BTUperLB> [0..1]

'The number of British Thermal Units per Pound of the coal product.'

<topSize> CoalAttributeDecimal </topSize> [0..1]

'The smallest sieve opening that will result in less than 5% of a sample of the coal product remaining.'

<finesPassingScreen> CoalAttributeDecimal </finesPassingScreen> [0..1]

<grindability> CoalAttributeDecimal </grindability> [0..1]

'The Hardgrove Grindability Index value of the coal to be delivered.'

<ashFusionTemperature> CoalAttributeDecimal </ashFusionTemperature> [0..1]

'The temperature at which the ash form of the coal product fuses completely in accordance with the ASTM International D1857 Standard Test Methodology.'

Schema Component Representation

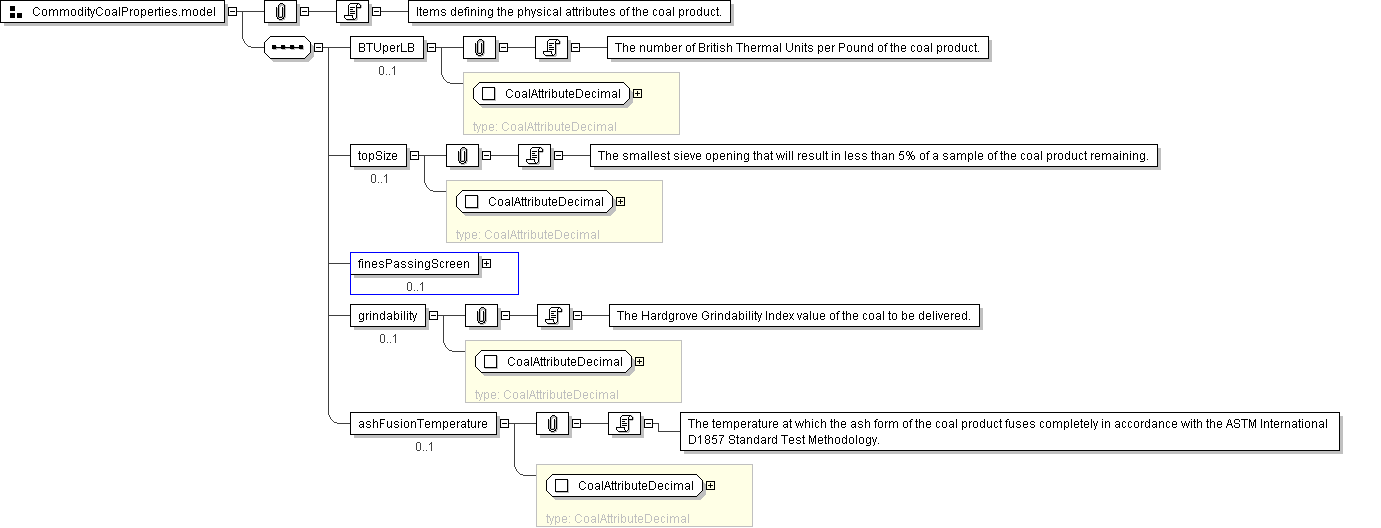

<xsd:group name="CommodityCoalProperties.model">

<xsd:sequence>

<xsd:element name="BTUperLB" type=" CoalAttributeDecimal " minOccurs="0"/>

<xsd:element name="topSize" type=" CoalAttributeDecimal " minOccurs="0"/>

<xsd:element name="finesPassingScreen" type=" CoalAttributeDecimal " minOccurs="0"/>

<xsd:element name="grindability" type=" CoalAttributeDecimal " minOccurs="0"/>

<xsd:element name="ashFusionTemperature" type=" CoalAttributeDecimal " minOccurs="0"/>

</xsd:sequence>

</xsd:group>
