XML Schema Documentation

Name	CommodityCoalReducingAtmosphere.model
Used by (from the same schema document)	Complex Type CoalStandardQuality
Documentation	Items defining the attributes of the coal product determined by ash fusion tests.

XML Instance Representation

<initialDeformation> CoalAttributeDecimal </initialDeformation> [0..1]

'The temperature at which an ash cone shows evidence of deformation.'

<softeningHeightWidth> CoalAttributeDecimal </softeningHeightWidth> [0..1]

'The temperature at which the height of an ash cone equals its width. (Softening temperature).'

<softeningHeightHalfWidth> CoalAttributeDecimal </softeningHeightHalfWidth> [0..1]

'The temperature at which the height of an ash cone equals half its width. (Hemisphere temperature).'

<fluid> CoalAttributeDecimal </fluid> [0..1]

'The temperature at which the ash cone flattens.'

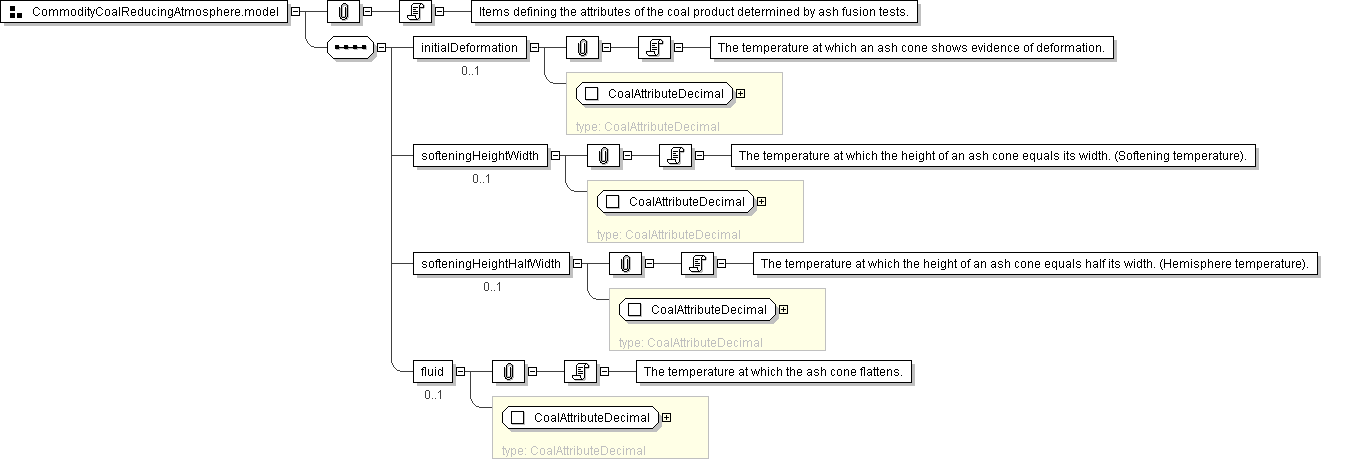

Schema Component Representation

<xsd:group name="CommodityCoalReducingAtmosphere.model">

<xsd:sequence>

<xsd:element name="initialDeformation" type=" CoalAttributeDecimal " minOccurs="0"/>

<xsd:element name="softeningHeightWidth" type=" CoalAttributeDecimal " minOccurs="0"/>

<xsd:element name="softeningHeightHalfWidth" type=" CoalAttributeDecimal " minOccurs="0"/>

<xsd:element name="fluid" type=" CoalAttributeDecimal " minOccurs="0"/>

</xsd:sequence>

</xsd:group>
