XML Schema Documentation

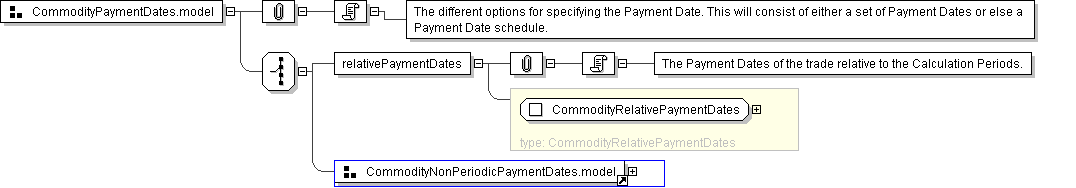

Name	CommodityPaymentDates.model
Used by (from the same schema document)	Complex Type CommodityExercise , Complex Type FixedPriceLeg , Complex Type FloatingPriceLeg , Complex Type NonPeriodicFixedPriceLeg
Documentation	The different options for specifying the Payment Date. This will consist of either a set of Payment Dates or else a Payment Date schedule.

XML Instance Representation

Start Choice [1]

<relativePaymentDates> CommodityRelativePaymentDates </relativePaymentDates> [1]

'The Payment Dates of the trade relative to the Calculation Periods.'

Start Choice [1]

<paymentDates> AdjustableDatesOrRelativeDateOffset </paymentDates> [1]

'Dates on which payments will be made.'

<masterAgreementPaymentDates> xsd:boolean </masterAgreementPaymentDates> [1]

'If present and true indicates that the Payment Date(s) are specified in the relevant master agreement.'

End Choice
End Choice

Schema Component Representation

<xsd:group name="CommodityPaymentDates.model">

<xsd:choice>

<xsd:element name="relativePaymentDates" type=" CommodityRelativePaymentDates "/>

<xsd:group ref=" CommodityNonPeriodicPaymentDates.model "/>

</xsd:choice>

</xsd:group>
