XML Schema Documentation

Name	CommodityUSCoalDelivery.model
Used by (from the same schema document)	Complex Type CoalDelivery
Documentation	Items specific to the definition of the delivery of a US Coal Product.

XML Instance Representation

<quantityVariationAdjustment> xsd:boolean </quantityVariationAdjustment> [1]

'If true, indicates that QVA is applicable. If false, indicates that QVA is inapplicable.'

<transportationEquipment> CoalTransportationEquipment </transportationEquipment> [0..1]

'The transportation equipment with which the Coal Product will be delivered and received.'

<risk> CommodityDeliveryRisk </risk> [0..1]

'Specifies how the risk associated with the delivery is assigned.'

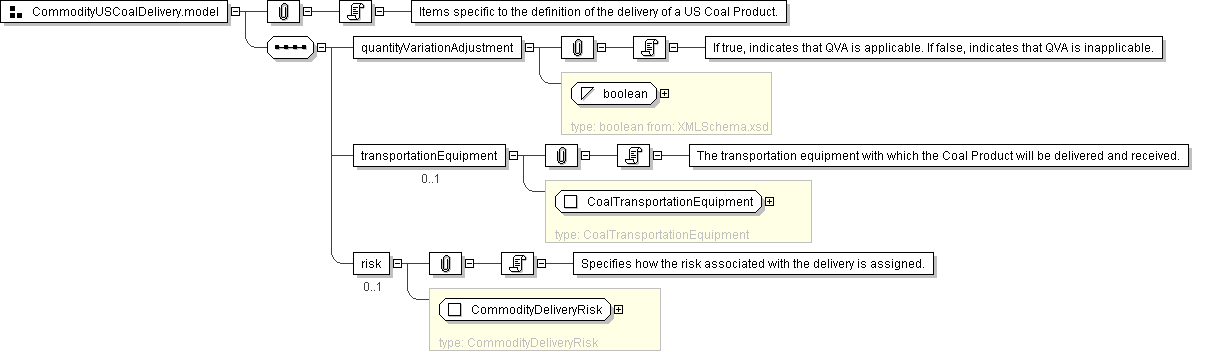

Diagram

Schema Component Representation

<xsd:group name="CommodityUSCoalDelivery.model">

<xsd:sequence>

<xsd:element name="quantityVariationAdjustment" type=" xsd:boolean "/>

<xsd:element name="transportationEquipment" type=" CoalTransportationEquipment " minOccurs="0"/>

<xsd:element name="risk" type=" CommodityDeliveryRisk " minOccurs="0"/>

</xsd:sequence>

</xsd:group>
