XML Schema Documentation

Super-types:	None
Sub-types:	ElectricityDeliveryPeriods (by extension) GasDeliveryPeriods (by extension)

Name	CommodityDeliveryPeriods
Used by (from the same schema document)	Complex Type CoalPhysicalLeg , Complex Type ElectricityPhysicalLeg , Complex Type OilPhysicalLeg
Abstract	no
Documentation	The different options for specifying the Delivery Periods of a physical leg.

XML Instance Representation

<...
id=" xsd:ID [0..1]">
Start Choice [1]

<periods> AdjustableDates </periods> [1]

'The Delivery Periods for this leg of the swap. This type is only intended to be used if the Delivery Periods differ from the Calculation Periods on the fixed or floating leg. If DeliveryPeriods mirror another leg, then the calculationPeriodsReference element should be used to point to the Calculation Periods on that leg - or the calculationPeriodsScheduleReference can be used to point to the Calculation Periods Schedule for that leg.'

<periodsSchedule> CommodityCalculationPeriodsSchedule </periodsSchedule> [1]

Start Choice [1]

<calculationPeriodsReference> CalculationPeriodsReference </calculationPeriodsReference> [1]

'A pointer style reference to the Calculation Periods defined on another leg.'

<calculationPeriodsScheduleReference> CalculationPeriodsScheduleReference </calculationPeriodsScheduleReference> [1]

'A pointer style reference to the Calculation Periods Schedule defined on another leg.'

<calculationPeriodsDatesReference> CalculationPeriodsDatesReference </calculationPeriodsDatesReference> [1]

'A pointer style reference to single-day-duration Calculation Periods defined on another leg.'

End Choice
End Choice
</...>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support.

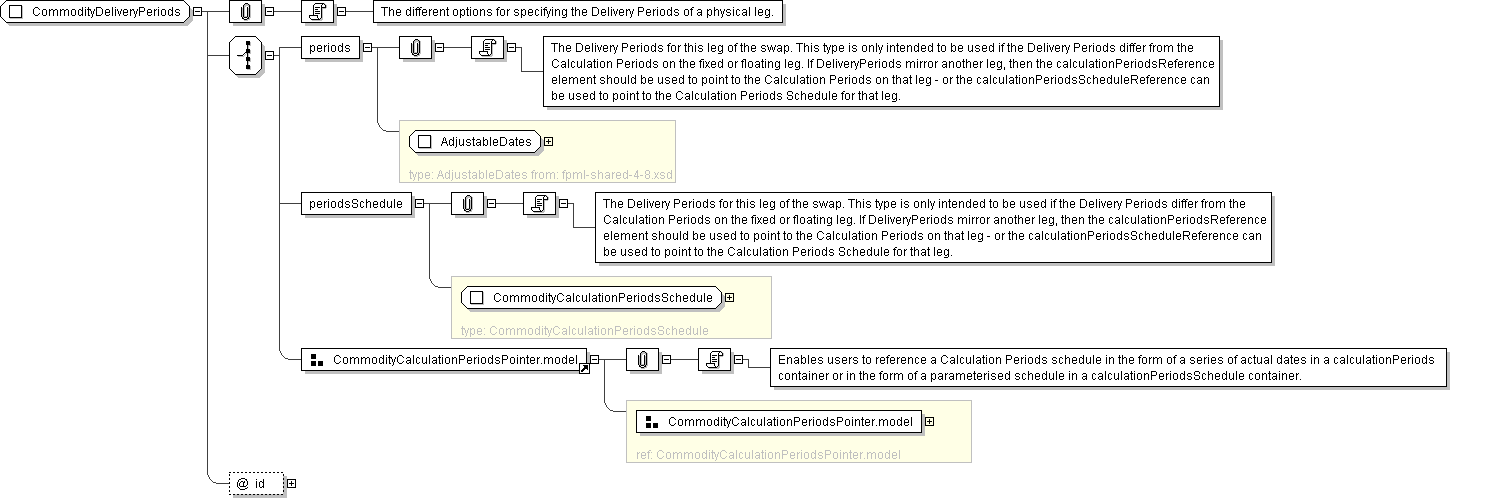

Complex Type: CommodityDeliveryPeriods
