XML Schema Documentation

Super-types:	None
Sub-types:	None

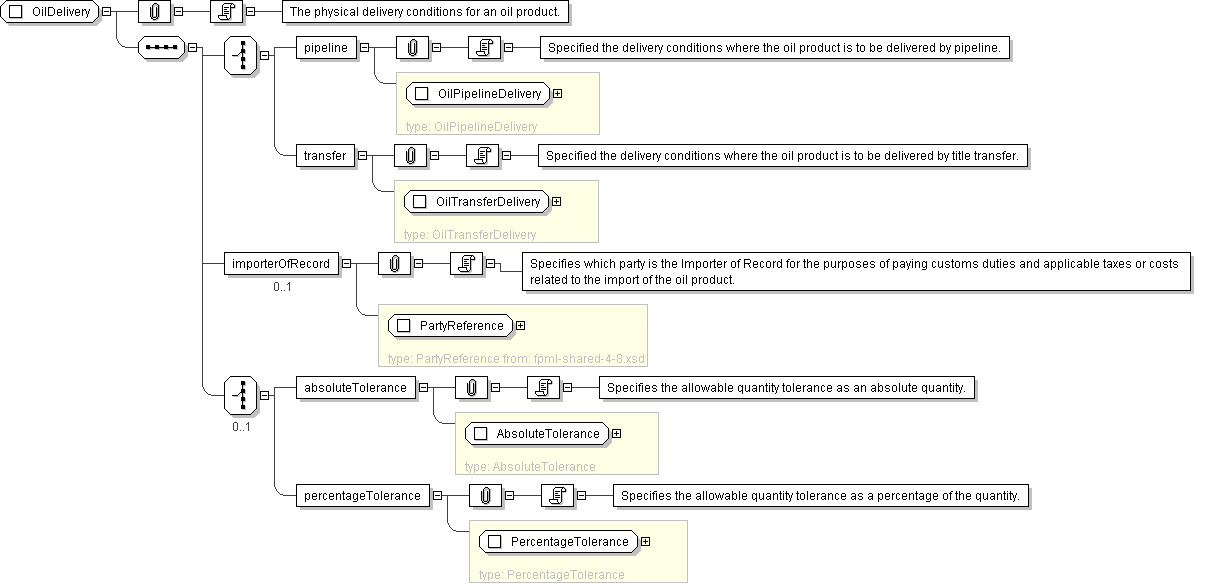

Name	OilDelivery
Used by (from the same schema document)	Complex Type OilPhysicalLeg
Abstract	no
Documentation	The physical delivery conditions for an oil product.

XML Instance Representation

<...>
Start Choice [1]

<pipeline> OilPipelineDelivery </pipeline> [1]

'Specified the delivery conditions where the oil product is to be delivered by pipeline.'

<transfer> OilTransferDelivery </transfer> [1]

'Specified the delivery conditions where the oil product is to be delivered by title transfer.'

End Choice

<importerOfRecord> PartyReference </importerOfRecord> [0..1]

'Specifies which party is the Importer of Record for the purposes of paying customs duties and applicable taxes or costs related to the import of the oil product.'

Start Choice [0..1]

<absoluteTolerance> AbsoluteTolerance </absoluteTolerance> [1]

'Specifies the allowable quantity tolerance as an absolute quantity.'

<percentageTolerance> PercentageTolerance </percentageTolerance> [1]

'Specifies the allowable quantity tolerance as a percentage of the quantity.'

End Choice
</...>

Schema Component Representation

<xsd:complexType name="OilDelivery">

<xsd:sequence>

<xsd:choice>

<xsd:element name="pipeline" type=" OilPipelineDelivery "/>

<xsd:element name="transfer" type=" OilTransferDelivery "/>

</xsd:choice>

<xsd:element name="importerOfRecord" type=" PartyReference " minOccurs="0"/>

<xsd:choice minOccurs="0">

<xsd:element name="absoluteTolerance" type=" AbsoluteTolerance "/>

<xsd:element name="percentageTolerance" type=" PercentageTolerance "/>

</xsd:choice>

</xsd:sequence>

</xsd:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support.
