XML Schema Documentation

Super-types:	None
Sub-types:	Offset (by extension) DateOffset (by extension) RelativeDateOffset (by extension) AdjustedRelativeDateOffset (by extension) RelativeDates (by extension)

Name	Period
Used by (from the same schema document)	Complex Type ForecastRateIndex , Model Group FloatingRateIndex.model
Abstract	no
Documentation	A type to define recurring periods or time offsets.

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<periodMultiplier> xsd:integer </periodMultiplier> [1]

'A time period multiplier, e.g. 1, 2 or 3 etc. A negative value can be used when specifying an offset relative to another date, e.g. -2 days.'

<period> PeriodEnum </period> [1]

'A time period, e.g. a day, week, month or year of the stream. If the periodMultiplier value is 0 (zero) then period must contain the value D (day).'

</...>

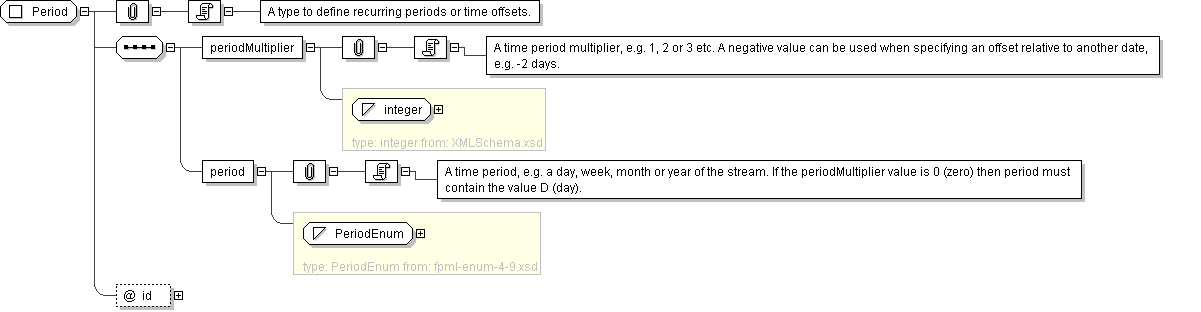

Diagram

Schema Component Representation

<xsd:complexType name="Period">

<xsd:sequence>

<xsd:element name="periodMultiplier" type=" xsd:integer "/>

<xsd:element name="period" type=" PeriodEnum "/>

</xsd:sequence>

<xsd:attribute name="id" type=" xsd:ID "/>

</xsd:complexType>
