element <exchangeId> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
ExchangeId
Content:
simple, 1 attribute
Defined:
locally within CommodityReferencePriceFramework.model group in fpml-asset-5-11.xsd; see XML source

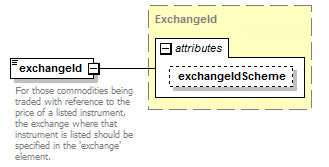

Content Model Diagram
XML Representation Summary
<exchangeId

exchangeIdScheme
 =
xsd:anyURI : "http://www.fpml.org/coding-scheme/external/exchange-id-MIC"

>

Content:
{ xsd:normalizedString }
</exchangeId>
Simple Content Detail:
MaxLength:
255
MinLength:
1
Included in content model of elements (6):
commodity,
commodity (defined in CommodityBasketUnderlyingBase complexType),
commodity (defined in CommodityUnderlyerChoice.model group),
commodity (in commodityDigitalOption),
commodity (in commodityOption),
commodity (in floatingLeg)
Annotation
For those commodities being traded with reference to the price of a listed instrument, the exchange where that instrument is listed should be specified in the 'exchange' element.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="exchangeId" type="ExchangeId"/>
