element <quote> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
BasicQuotation
Content:
complex, 1 attribute, 15 elements
Defined:
locally within EventValuation.model group in fpml-business-events-5-11.xsd; see XML source

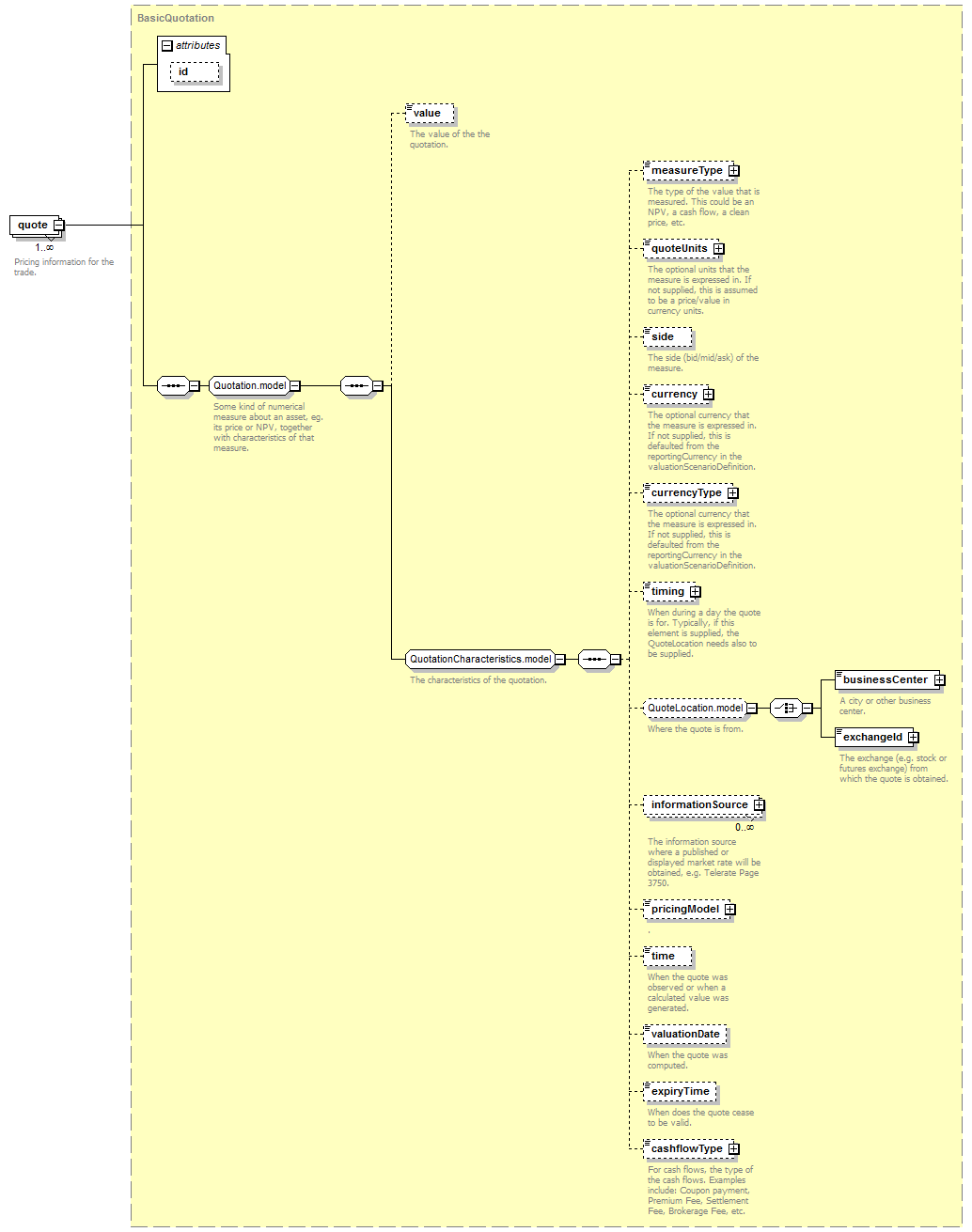

Content Model Diagram
XML Representation Summary
<quote

id
 =
xsd:ID

>

Content:
value?, measureType?, quoteUnits?, side?, currency?, currencyType?, timing?, (businessCenter | exchangeId)?, informationSource*, pricingModel?, time?, valuationDate?, expiryTime?, cashflowType?
</quote>
Content model elements (15):
businessCenter (defined in QuoteLocation.model group),
cashflowType (defined in QuotationCharacteristics.model group),
currency (defined in QuotationCharacteristics.model group),
currencyType,
exchangeId (defined in QuoteLocation.model group),
expiryTime (defined in QuotationCharacteristics.model group),
informationSource (defined in QuotationCharacteristics.model group),
measureType,
pricingModel,
quoteUnits (defined in QuotationCharacteristics.model group),
side (defined in QuotationCharacteristics.model group),
time (defined in QuotationCharacteristics.model group),
timing,
valuationDate (defined in QuotationCharacteristics.model group),
value (defined in Quotation.model group)
Included in content model of elements (8):
clearingConfirmed, clearingRefused, executionAdvice, executionNotification, optionExpirationNotification, requestClearing, requestConsent, tradeChangeAdvice
Annotation
Pricing information for the trade.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="quote" type="BasicQuotation"/>
