element <registrationNumber> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
RegulatorId
Content:
simple, 1 attribute
Defined:
locally within SupervisorRegistration.model group in fpml-doc-5-11.xsd; see XML source

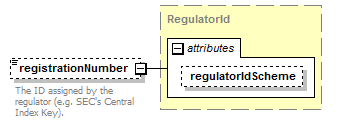

Content Model Diagram
XML Representation Summary
<registrationNumber

regulatorIdScheme
 =
xsd:anyURI

>

Content:
{ xsd:normalizedString }
</registrationNumber>
Simple Content Detail:
MaxLength:
255
MinLength:
1
Included in content model of elements (6):
supervisorRegistration (defined in ReportingRegimeIdentifier complexType),
supervisorRegistration (defined in ReportingRegimeIdentifier complexType),
supervisorRegistration (in endUserExceptionDeclaration),
supervisorRegistration (in mandatoryFacilityExecutionExceptionDeclaration),
supervisorRegistration (in reportingRegime defined in PartyTradeInformation complexType),
supervisorRegistration (in reportingRegime defined in PartyTradeInformation complexType)
Annotation
The ID assigned by the regulator (e.g. SEC's Central Index Key).
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="registrationNumber" type="RegulatorId"/>
