element <partyTradeIdentifier> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
PartyTradeIdentifier
Content:
complex, 1 attribute, 13 elements
Defined:
locally within TradeIdentifiers.model group in fpml-doc-5-11.xsd; see XML source

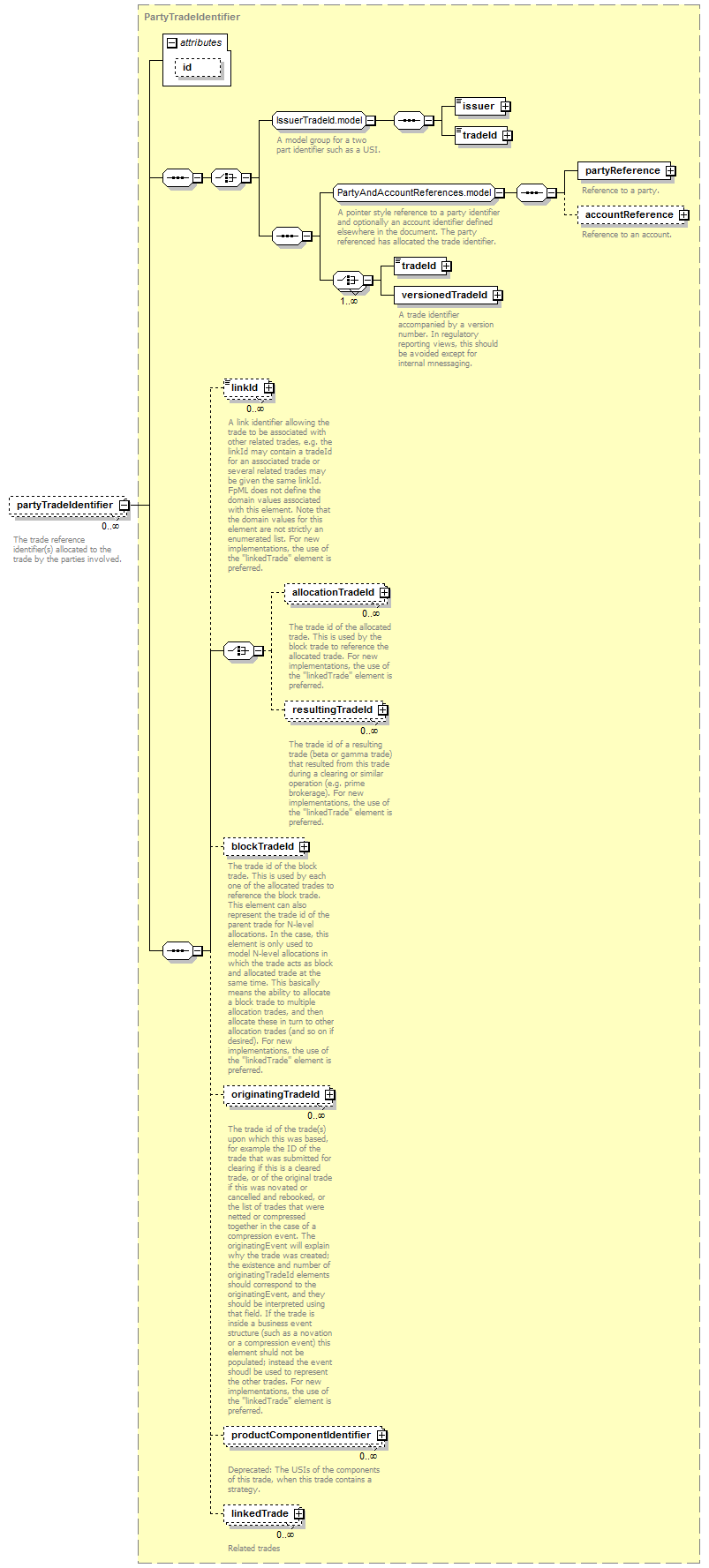

Content Model Diagram
XML Representation Summary
<partyTradeIdentifier

id
 =
xsd:ID

>

Content:
((issuer, tradeId) | (partyReference, accountReference?, (tradeId | versionedTradeId)+)), linkId*, (allocationTradeId* | resultingTradeId*), blockTradeId?, originatingTradeId*, productComponentIdentifier*, linkedTrade*
</partyTradeIdentifier>
Content model elements (13):
accountReference (defined in PartyAndAccountReferences.model group),
allocationTradeId (defined in PartyTradeIdentifier complexType),
blockTradeId,
issuer (defined in IssuerTradeId.model group),
linkId (defined in PartyTradeIdentifier complexType),
linkedTrade,
originatingTradeId (defined in PartyTradeIdentifier complexType),
partyReference (defined in PartyAndAccountReferences.model group),
productComponentIdentifier,
resultingTradeId,
tradeId (defined in IssuerTradeId.model group),
tradeId (defined in TradeIdentifier complexType),
versionedTradeId
Included in content model of elements (1):
tradeHeader
Annotation
The trade reference identifier(s) allocated to the trade by the parties involved.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="partyTradeIdentifier" type="PartyTradeIdentifier"/>
