element <lowerBound> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FxTargetRegionLowerBound
Content:
complex, 6 elements
Defined:
locally within FxTargetRegionBound.model group in fpml-fx-targets-5-11.xsd; see XML source

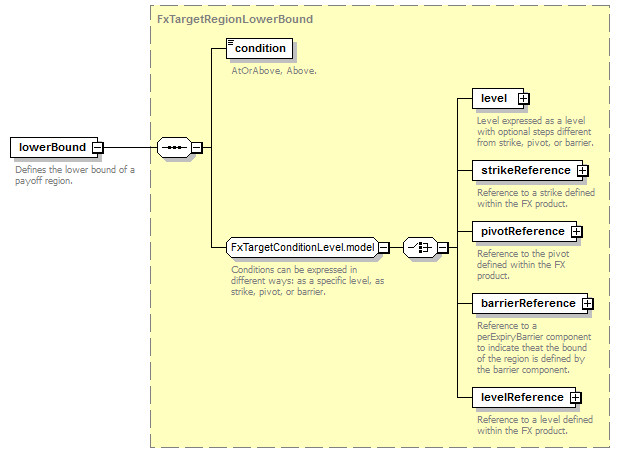

Content Model Diagram
XML Representation Summary
<lowerBound>

Content:
condition, (level | strikeReference | pivotReference | barrierReference | levelReference)
</lowerBound>
Content model elements (6):
barrierReference (defined in FxTargetConditionLevel.model group),
condition (defined in FxTargetRegionLowerBound complexType),
level (defined in FxTargetConditionLevel.model group),
levelReference,
pivotReference,
strikeReference (defined in FxTargetConditionLevel.model group)
Included in content model of elements (4):
Annotation
Defines the lower bound of a payoff region.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="lowerBound" type="FxTargetRegionLowerBound"/>
