element <observationFrequency> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
ObservationFrequency
Content:
complex, 1 attribute, 3 elements
Defined:
locally within ParametricSchedule.model group in fpml-fx-targets-5-11.xsd; see XML source

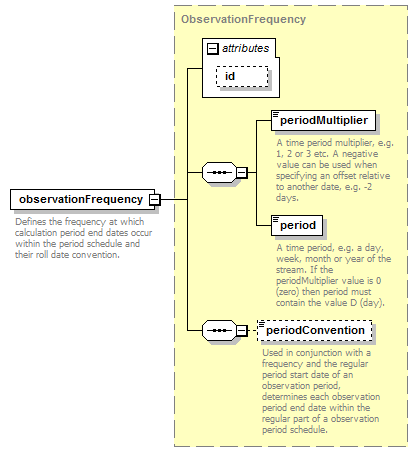

Content Model Diagram
XML Representation Summary
<observationFrequency

id
 =
xsd:ID

>

Content:
periodMultiplier, period, periodConvention?
</observationFrequency>
Content model elements (3):
period (defined in Period complexType),
periodMultiplier (defined in Period complexType)
Included in content model of elements (6):
expirySchedule (defined in FxExpiryDateOrSchedule.model group),
expirySchedule (in fxTargetKnockoutForward),
fixingSchedule (defined in FxAccrual complexType),
fixingSchedule (defined in FxAveragingProcess complexType),
settlementSchedule (defined in FxSettlementDateOrSchedule.model group),
settlementSchedule (in fxTargetKnockoutForward)
Annotation
Defines the frequency at which calculation period end dates occur within the period schedule and their roll date convention.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="observationFrequency" type="ObservationFrequency"/>
