element <facilitySummary> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FacilitySummary
Content:
complex, 1 attribute, 17 elements
Defined:
locally within FacilityDetails.model group in fpml-loan-5-11.xsd; see XML source

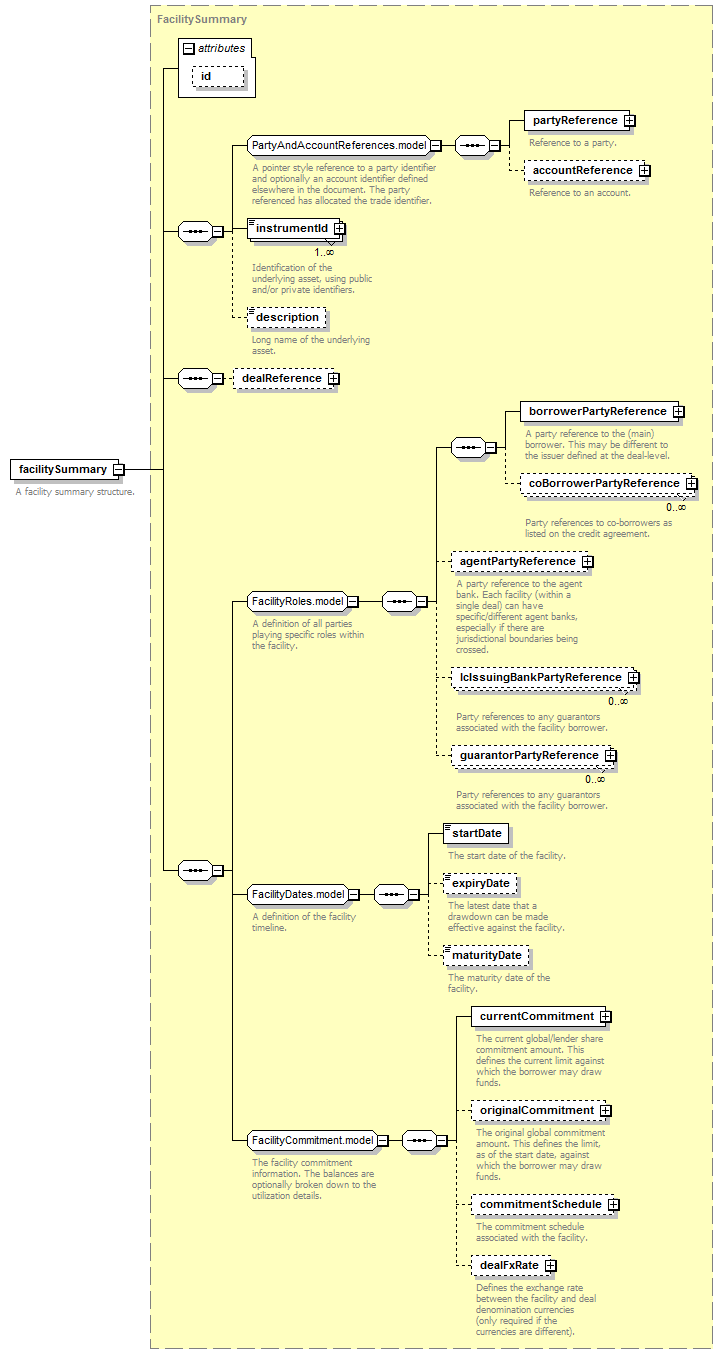

Content Model Diagram
XML Representation Summary
<facilitySummary

id
 =
xsd:ID

>

Content:
partyReference, accountReference?, instrumentId+, description?, dealReference?, borrowerPartyReference, coBorrowerPartyReference*, agentPartyReference?, lcIssuingBankPartyReference*, guarantorPartyReference*, startDate, expiryDate?, maturityDate?, currentCommitment, originalCommitment?, commitmentSchedule?, dealFxRate?
</facilitySummary>
Content model elements (17):
accountReference (defined in PartyAndAccountReferences.model group),
agentPartyReference (defined in FacilityRoles.model group),
borrowerPartyReference (defined in FacilityRoles.model group),
coBorrowerPartyReference,
commitmentSchedule (defined in FacilityCommitment.model group),
currentCommitment,
dealFxRate,
dealReference,
description (defined in IdentifiedAssetWithParty complexType),
expiryDate (defined in FacilityDates.model group),
guarantorPartyReference (defined in FacilityRoles.model group),
instrumentId (defined in IdentifiedAssetWithParty complexType),
lcIssuingBankPartyReference,
maturityDate (defined in FacilityDates.model group),
originalCommitment,
partyReference (defined in PartyAndAccountReferences.model group),
startDate (defined in FacilityDates.model group)
Included in content model of elements (7):
facilityNotification, facilityPositionStatement, lcNotification, loanAllocationNotification, loanBulkServicingNotification, loanContractNotification, loanTradeNotification
Annotation
A facility summary structure.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="facilitySummary" type="FacilitySummary"/>
