element <letterOfCredit> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
LetterOfCredit
Content:
complex, 1 attribute, 18 elements
Defined:
locally within LetterOfCreditDetails.model group in fpml-loan-5-11.xsd; see XML source

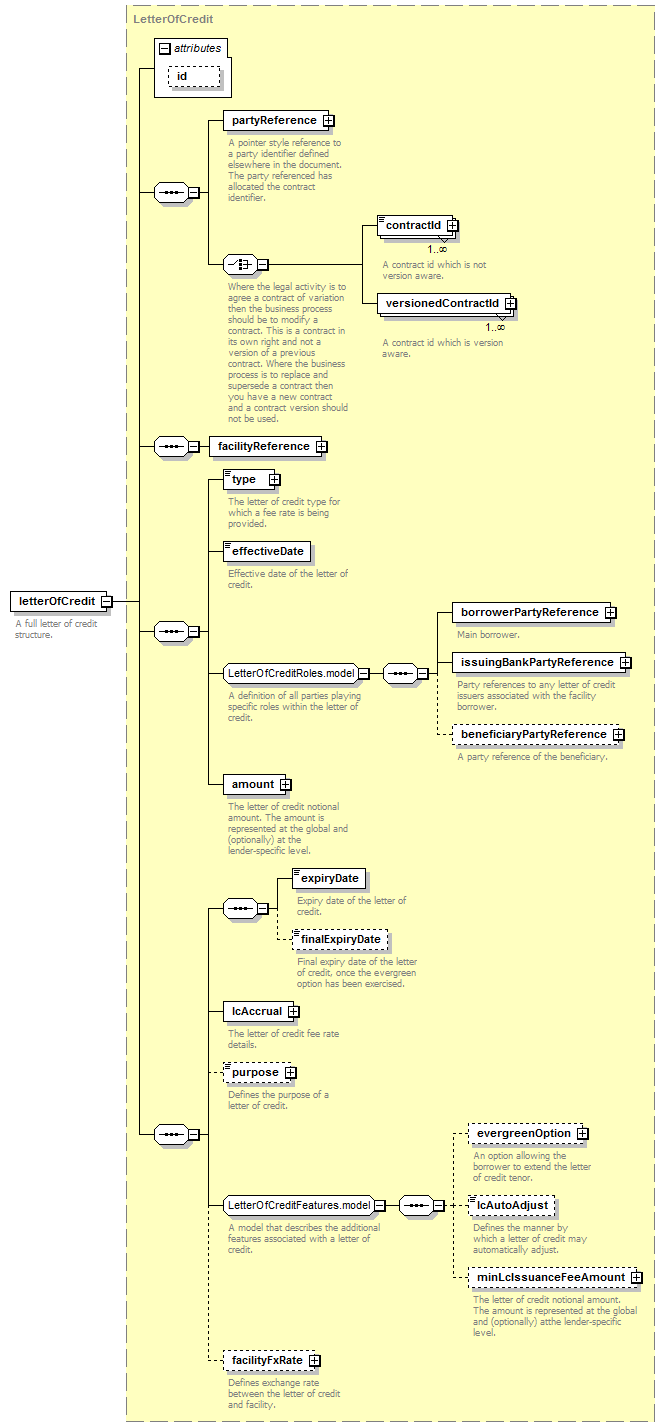

Content Model Diagram
XML Representation Summary
<letterOfCredit

id
 =
xsd:ID

>

Content:
partyReference, (contractId+ | versionedContractId+), facilityReference, type, effectiveDate, borrowerPartyReference, issuingBankPartyReference, beneficiaryPartyReference?, amount, expiryDate, finalExpiryDate?, lcAccrual, purpose?, evergreenOption?, lcAutoAdjust?, minLcIssuanceFeeAmount?, facilityFxRate?
</letterOfCredit>
Content model elements (18):
amount (defined in LetterOfCreditSummary complexType),
beneficiaryPartyReference (defined in LetterOfCreditRoles.model group),
borrowerPartyReference (defined in LetterOfCreditRoles.model group),
contractId (defined in ContractIdentifier complexType),
effectiveDate (defined in LetterOfCreditSummary complexType),
evergreenOption,
expiryDate (defined in LetterOfCredit complexType),
facilityFxRate (defined in LetterOfCredit complexType),
facilityReference (defined in FacilityContractIdentifier complexType),
finalExpiryDate (defined in LetterOfCredit complexType),
issuingBankPartyReference,
lcAccrual,
lcAutoAdjust,
minLcIssuanceFeeAmount (defined in LetterOfCreditFeatures.model group),
partyReference (defined in ContractIdentifier complexType),
purpose,
type (defined in LetterOfCreditSummary complexType),
versionedContractId
Included in content model of elements (4):
facilityNotification, lcNotification, loanAllocationNotification, loanBulkServicingNotification
Annotation
A full letter of credit structure.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="letterOfCredit" type="LetterOfCredit"/>
