element <allocationSummary> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
LoanAllocationSummary
Content:
complex, 1 attribute, 9 elements
Defined:
locally within LoanTradeAllocationDetails.model group in fpml-loan-5-11.xsd; see XML source

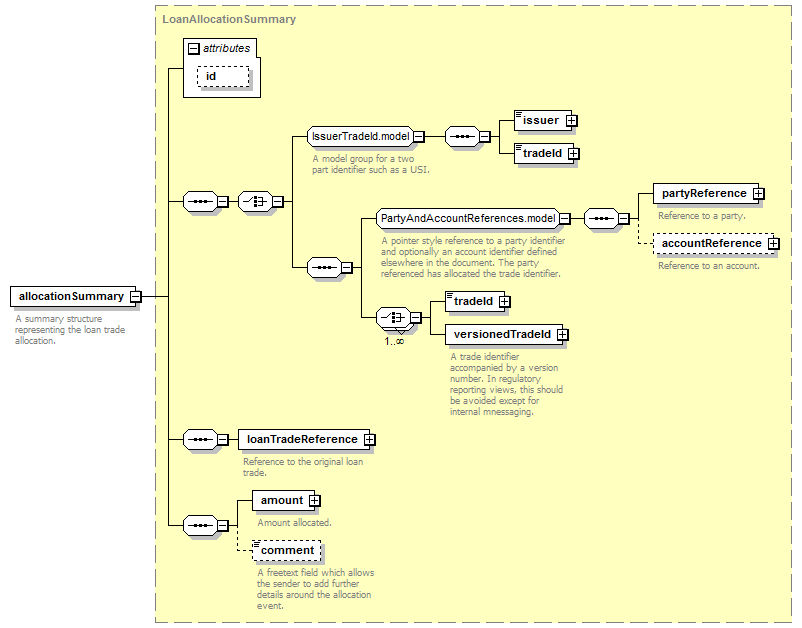

Content Model Diagram
XML Representation Summary
<allocationSummary

id
 =
xsd:ID

>

Content:
((issuer, tradeId) | (partyReference, accountReference?, (tradeId | versionedTradeId)+)), loanTradeReference, amount, comment?
</allocationSummary>
Content model elements (9):
accountReference (defined in PartyAndAccountReferences.model group),
amount (defined in LoanAllocationSummary complexType),
comment (defined in LoanAllocationSummary complexType),
issuer (defined in IssuerTradeId.model group),
loanTradeReference (defined in LoanAllocationIdentifier complexType),
partyReference (defined in PartyAndAccountReferences.model group),
tradeId (defined in IssuerTradeId.model group),
tradeId (defined in TradeIdentifier complexType),
versionedTradeId
Included in content model of elements (1):
loanAllocationNotification
Annotation
A summary structure representing the loan trade allocation.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="allocationSummary" type="LoanAllocationSummary"/>
