element <extensionPeriod> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
AdjustableOffset
Content:
complex, 1 attribute, 5 elements
Defined:
locally within ExtensionPeriod.model group in fpml-repo-5-11.xsd; see XML source

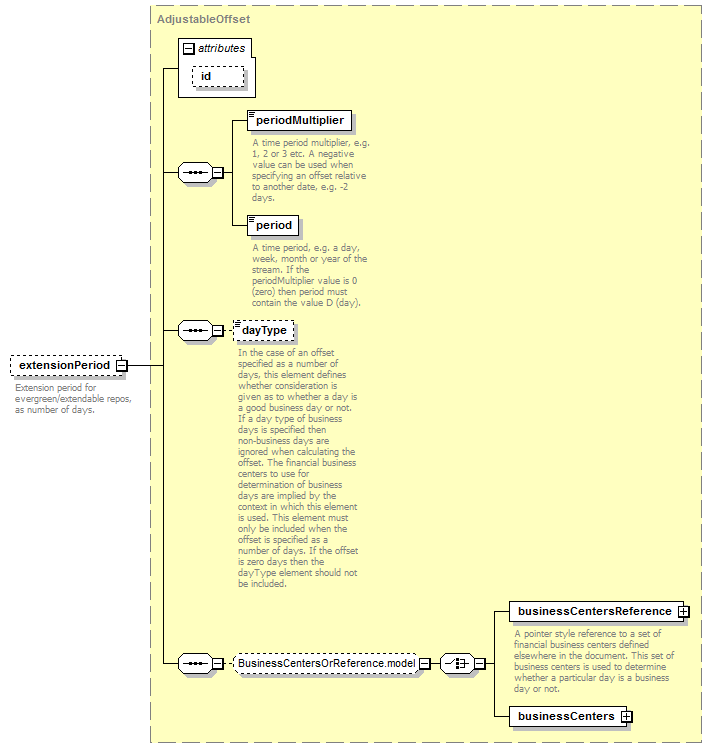

Content Model Diagram
XML Representation Summary
<extensionPeriod

id
 =
xsd:ID

>

Content:
periodMultiplier, period, dayType?, (businessCentersReference | businessCenters)?
</extensionPeriod>
Content model elements (5):
businessCenters (defined in BusinessCentersOrReference.model group),
businessCentersReference,
dayType (defined in Offset complexType),
period (defined in Period complexType),
periodMultiplier (defined in Period complexType)
Included in content model of elements (2):
repo, securityLending
Annotation
Extension period for evergreen/extendable repos, as number of days.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="extensionPeriod" type="AdjustableOffset"/>
