element <routingExplicitDetails> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
RoutingExplicitDetails
Content:
complex, 4 elements
Defined:
locally within RoutingIdentification.model group in fpml-shared-5-11.xsd; see XML source

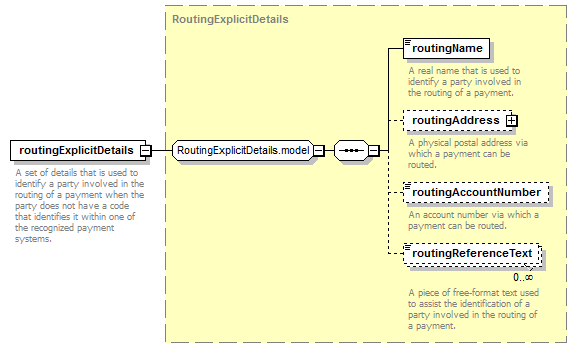

Content Model Diagram
XML Representation Summary
<routingExplicitDetails>

Content:
routingName, routingAddress?, routingAccountNumber?, routingReferenceText*
</routingExplicitDetails>
Content model elements (4):
routingAccountNumber, routingAddress, routingName, routingReferenceText
Included in content model of elements (6):
beneficiary (defined in SettlementInstruction complexType),
beneficiary (in splitSettlement),
beneficiaryBank (defined in SettlementInstruction complexType),
beneficiaryBank (in splitSettlement),
correspondentInformation,
intermediaryInformation
Annotation
A set of details that is used to identify a party involved in the routing of a payment when the party does not have a code that identifies it within one of the recognized payment systems.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="routingExplicitDetails" type="RoutingExplicitDetails"/>
