group "PostTradeEventsBase.model"
Namespace:
http://www.fpml.org/FpML-5/recordkeeping
Content:
9 elements
Defined:
globally in fpml-business-events-5-11.xsd; see XML source
Includes:
definitions of 9 elements
Used:
at 2 locations

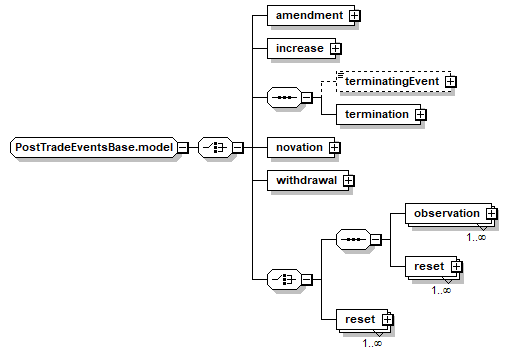

Content Model Diagram
Complex Content Model
amendment | increase | (terminatingEvent?, termination) | novation | withdrawal | (observation+, reset+) | reset+
Content Model Elements (9):
reset (defined in PostTradeEventsBase.model group),
reset (defined in PostTradeEventsBase.model group),
Known Usage Locations
Annotation
Choice between amendment, increase, termination, and novation events.
XML Source (w/o annotations (2); see within schema source)
<xsd:group name="PostTradeEventsBase.model">
<xsd:choice>
<xsd:element name="amendment" type="TradeAmendmentContent"/>
<xsd:element name="increase" type="TradeNotionalChange"/>
<xsd:sequence>
<xsd:element minOccurs="0" name="terminatingEvent" type="TerminatingEvent"/>
<xsd:element name="termination" type="TradeNotionalChange"/>
</xsd:sequence>
<xsd:element name="novation" type="TradeNovationContent"/>
<xsd:element name="withdrawal" type="Withdrawal"/>
<xsd:choice>
<xsd:sequence>
<xsd:element maxOccurs="unbounded" name="observation" type="ObservationEvent"/>
<xsd:element maxOccurs="unbounded" name="reset" type="ResetEvent"/>
</xsd:sequence>
<xsd:element maxOccurs="unbounded" name="reset" type="ResetEvent"/>
</xsd:choice>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 9/9)
amendment
Type:
TradeAmendmentContent, complex content
XML Source (see within schema source)
<xsd:element name="amendment" type="TradeAmendmentContent"/>
increase
Type:
TradeNotionalChange, complex content
XML Source (see within schema source)
<xsd:element name="increase" type="TradeNotionalChange"/>
novation
Type:
TradeNovationContent, complex content
XML Source (see within schema source)
<xsd:element name="novation" type="TradeNovationContent"/>
observation
Type:
ObservationEvent, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" name="observation" type="ObservationEvent"/>
reset
Type:
ResetEvent, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" name="reset" type="ResetEvent"/>
reset
Type:
ResetEvent, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" name="reset" type="ResetEvent"/>
terminatingEvent
Type:
TerminatingEvent, simple content
This may be used to describe why a trade was terminated.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="terminatingEvent" type="TerminatingEvent"/>
termination
Type:
TradeNotionalChange, complex content
XML Source (see within schema source)
<xsd:element name="termination" type="TradeNotionalChange"/>
withdrawal
Type:
Withdrawal, complex content
XML Source (see within schema source)
<xsd:element name="withdrawal" type="Withdrawal"/>
