element <reset> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
ResetEvent
Content:
complex, 6 elements
Defined:
locally within PostTradeEventsBase.model group in fpml-business-events-5-12.xsd; see XML source

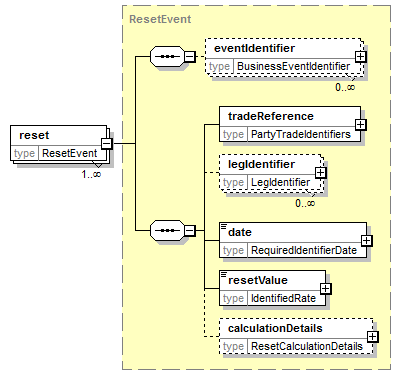

Content Model Diagram
XML Representation Summary
<reset>

Content:
eventIdentifier*, tradeReference, legIdentifier*, date, resetValue, calculationDetails?
</reset>
Content model elements (6):
calculationDetails (defined in ResetEvent complexType),
date (defined in ResetEvent complexType),
eventIdentifier (defined in AbstractEvent complexType),
legIdentifier (defined in ResetEvent complexType),
tradeReference (defined in ResetEvent complexType)
Included in content model of elements (13):
allegedEvent, assertedEvent, confirmationAgreed, confirmationDisputed, consentGranted, consentRefused, executionAdvice, executionAdviceRetracted, proposedMatch, requestConfirmation, requestConfirmationRetracted, requestConsent, requestConsentRetracted
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" name="reset" type="ResetEvent"/>
