element <dealSummary> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
DealSummary
Content:
complex, 1 attribute, 12 elements
Defined:
locally within DealDetails.model group in fpml-loan-5-12.xsd; see XML source

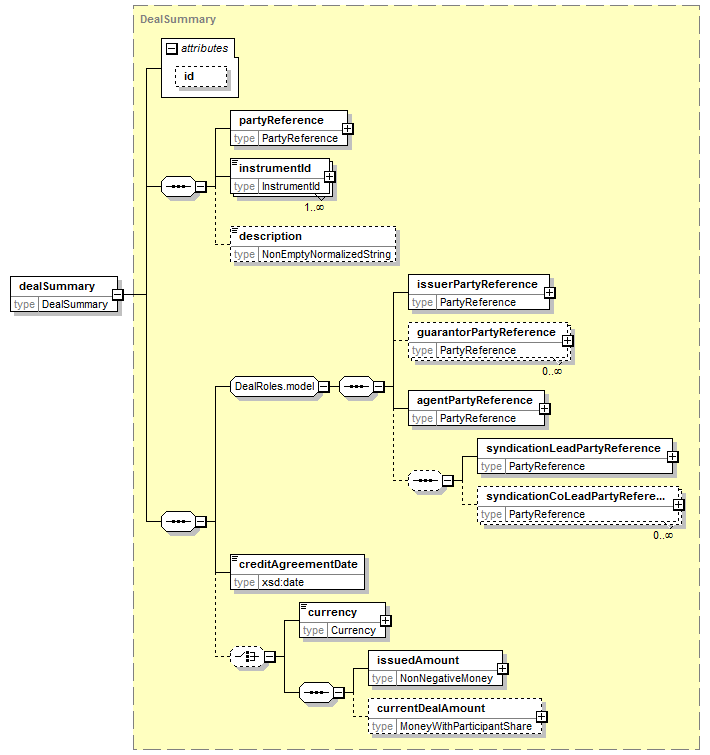

Content Model Diagram
XML Representation Summary
<dealSummary

id
 =
xsd:ID

>

Content:
partyReference, instrumentId+, description?, issuerPartyReference, guarantorPartyReference*, agentPartyReference, (syndicationLeadPartyReference, syndicationCoLeadPartyReference*)?, creditAgreementDate, (currency | (issuedAmount, currentDealAmount?))?
</dealSummary>
Content model elements (12):
agentPartyReference (defined in DealRoles.model group),
creditAgreementDate (defined in DealSummary complexType),
currency (defined in DealSummary complexType),
currentDealAmount,
description (defined in IdentifiedAssetWithParty complexType),
guarantorPartyReference (defined in DealRoles.model group),
instrumentId (defined in IdentifiedAssetWithParty complexType),
issuedAmount,
issuerPartyReference (defined in DealRoles.model group),
partyReference (defined in IdentifiedAssetWithParty complexType),
syndicationCoLeadPartyReference,
syndicationLeadPartyReference
Included in content model of elements (13):
dealStatement, facilityNotification, facilityPositionStatement, facilityStatement, lcNotification, loanAllocationNotification, loanBulkServicingNotification, loanContractNotification, loanCovenantObligationNotification, loanLegalActionNotification, loanLegalActionStatement, loanTradeNotification, outstandingContractsStatement
Annotation
A deal summary structure.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="dealSummary" type="DealSummary"/>
