element <legacyFloatingRateOption> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
LegacyFloatingRateOption
Content:
complex, 16 elements
Defined:
locally within FacilityOptionsFeesAndRates.model group in fpml-loan-5-12.xsd; see XML source

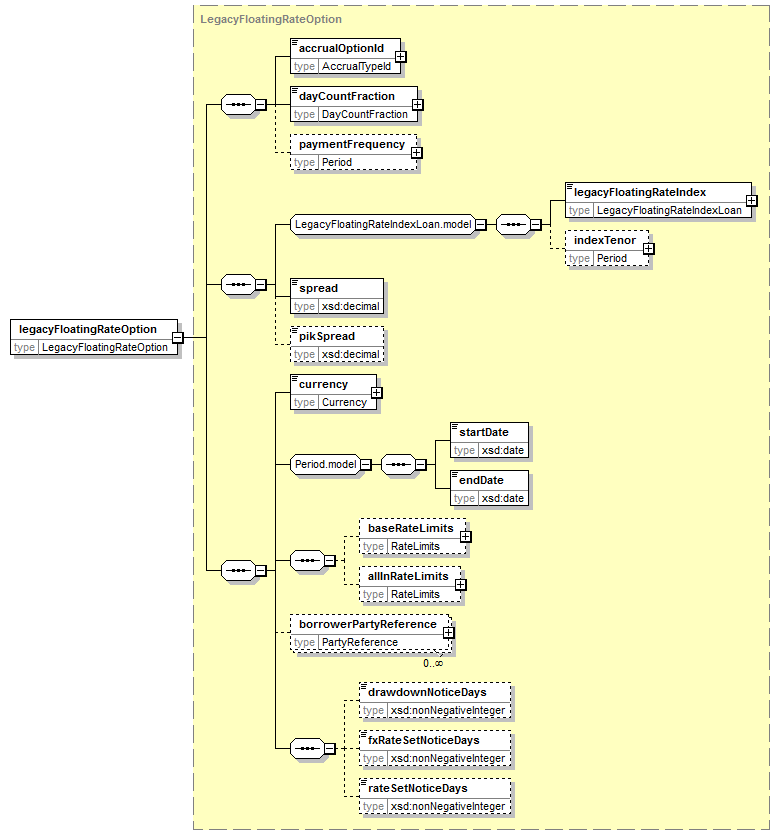

Content Model Diagram
XML Representation Summary
<legacyFloatingRateOption>

Content:
accrualOptionId, dayCountFraction, paymentFrequency?, legacyFloatingRateIndex, indexTenor?, spread, pikSpread?, currency, startDate, endDate, baseRateLimits?, allInRateLimits?, borrowerPartyReference*, drawdownNoticeDays?, fxRateSetNoticeDays?, rateSetNoticeDays?
</legacyFloatingRateOption>
Content model elements (16):
accrualOptionId (defined in AbstractLegacyAccrualOptionBase complexType),
allInRateLimits (defined in LegacyFloatingRateOption complexType),
baseRateLimits,
borrowerPartyReference (defined in LegacyFloatingRateOption complexType),
currency (defined in LegacyFloatingRateOption complexType),
dayCountFraction (defined in AbstractLegacyAccrualOptionBase complexType),
drawdownNoticeDays (defined in LegacyFloatingRateOption complexType),
endDate (defined in Period.model group),
fxRateSetNoticeDays (defined in LegacyFloatingRateOption complexType),
indexTenor (defined in LegacyFloatingRateIndexLoan.model group),
legacyFloatingRateIndex,
paymentFrequency (defined in AbstractLegacyAccrualOptionBase complexType),
pikSpread (defined in AbstractLegacyFloatingRateOptionBase complexType),
rateSetNoticeDays (defined in LegacyFloatingRateOption complexType),
spread (defined in AbstractLegacyFloatingRateOptionBase complexType),
startDate (defined in Period.model group)
Included in content model of elements (5):
delayedDraw, facilityGroup, letterOfCreditFacility, revolver, termLoan
Annotation
A structure that represents the legacy version (pre-IBOR replacement) of an accruing floating rate option associated within a facility.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="legacyFloatingRateOption" type="LegacyFloatingRateOption"/>
