element <oldTradeIdentifier> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
PartyTradeIdentifier
Content:
complex, 1 attribute, 10 elements
Defined:
locally witnin OldTrade.model group in fpml-business-events-5-3.xsd; see XML source

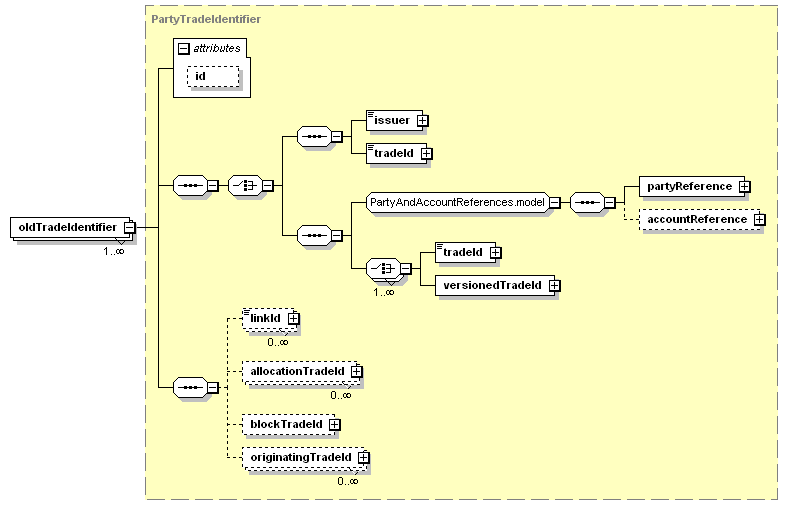

Content Model Diagram
XML Representation Summary
<oldTradeIdentifier

id
 =
 xsd:ID
    >

Content:
 ((issuer, tradeId) | (partyReference, accountReference?, (tradeId | versionedTradeId)+)), linkId*, allocationTradeId*, blockTradeId?, originatingTradeId*
</oldTradeIdentifier>
Content model elements (10):
accountReference (defined in PartyAndAccountReferences.model group),
allocationTradeId (defined in PartyTradeIdentifier complexType),
blockTradeId,
issuer,
linkId,
originatingTradeId (defined in PartyTradeIdentifier complexType),
partyReference (defined in PartyAndAccountReferences.model group),
tradeId (defined in TradeIdentifier complexType),
tradeId (defined in TradeIdentifier complexType),
versionedTradeId
Included in content model of elements (1):
novation
Annotation
Indicates a reference to the original trade between the transferor and the remaining party.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="oldTradeIdentifier" type="PartyTradeIdentifier"/>
