element <calculationAgent> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
CalculationAgent
Content:
complex, 2 elements
Defined:
locally witnin CalculationAgent.model group in fpml-doc-5-3.xsd; see XML source

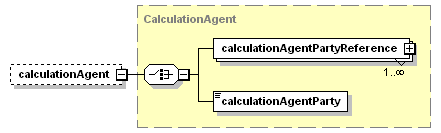

Content Model Diagram
XML Representation Summary
<calculationAgent>

Content:
 calculationAgentPartyReference+ | calculationAgentParty
</calculationAgent>
Content model elements (2):
calculationAgentParty, calculationAgentPartyReference
Included in content model of elements (16):
feeTrade,
oldTrade (defined in TradeChangeContent complexType),
originalTrade (defined in TradeChangeBase complexType),
trade (defined in DataDocument complexType),
 trade (defined in Events.model group),
trade (defined in ImpliedTrade complexType),
trade (defined in TradeChangeContent complexType),
trade (defined in TradeOrInfo.model group),
Annotation
The ISDA calculation agent responsible for performing duties as defined in the applicable product definitions.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="calculationAgent" type="CalculationAgent"/>
