element <calculationAgentBusinessCenter> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	BusinessCenter
Content:	simple, 2 attributes
Defined:	locally witnin CalculationAgent.model group in fpml-doc-5-3.xsd; see XML source

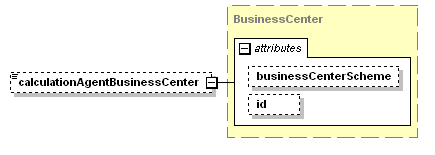

Content Model Diagram

XML Representation Summary

<calculationAgentBusinessCenter

businessCenterScheme	=	xsd:anyURI : "http://www.fpml.org/coding-scheme/business-center"
id	=	xsd:ID

Content:

{ xsd:normalizedString }

</calculationAgentBusinessCenter>

Simple Content Detail:

MaxLength:

255

Included in content model of elements (16):

feeTrade,

newTrade,

oldTrade (defined in TradeChangeContent complexType),

oldTrade (in novation),

originalTrade (defined in TradeChangeBase complexType),

originalTrade (in optionExercise),

resultingTrade,

trade (defined in DataDocument complexType),

trade (defined in Events.model group),

trade (defined in ImpliedTrade complexType),

trade (defined in TradeChangeContent complexType),

trade (defined in TradeOrInfo.model group),

trade (in affectedTransactions),

trade (in amendment),

trade (in clearingStatusItem),

trade (in constituent)

Annotation

The city in which the office through which ISDA Calculation Agent is acting for purposes of the transaction is located The short-form confirm for a trade that is executed under a Sovereign or Asia Pacific Master Confirmation Agreement ( MCA ), does not need to specify the Calculation Agent. However, the confirm does need to specify the Calculation Agent City. This is due to the fact that the MCA sets the value for Calculation Agent but does not set the value for Calculation Agent City.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="calculationAgentBusinessCenter" type="BusinessCenter"/>
