element <exchangedCurrency2> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Payment
Content:
complex, 2 attributes, 10 elements
Defined:
locally witnin FxCoreDetails.model group in fpml-fx-5-3.xsd; see XML source

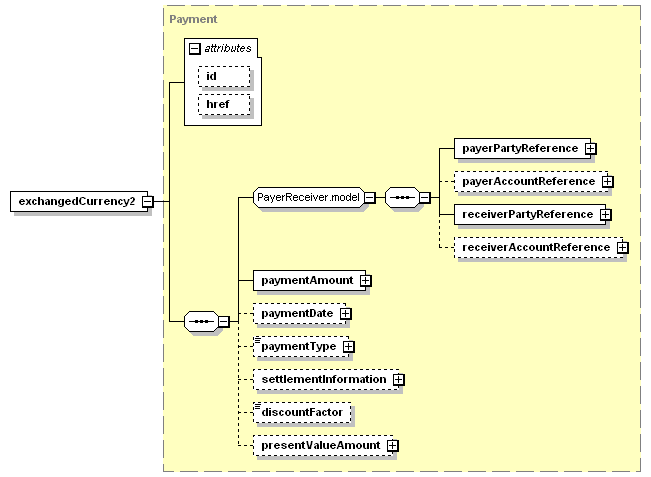

Content Model Diagram
XML Representation Summary
<exchangedCurrency2

id
 =
 xsd:ID
href
 =
 xsd:IDREF
    >

Content:
 payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, paymentAmount, paymentDate?, paymentType?, settlementInformation?, discountFactor?, presentValueAmount?
</exchangedCurrency2>
Content model elements (10):
discountFactor (defined in Payment complexType),
paymentAmount (defined in Payment complexType),
paymentDate (defined in Payment complexType),
 paymentType (defined in Payment complexType),
presentValueAmount (defined in Payment complexType),
settlementInformation (defined in Payment complexType)
Included in content model of elements (3):
farLeg, fxSingleLeg, nearLeg
Annotation
This is the second of the two currency flows that define a single leg of a standard foreign exchange transaction.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="exchangedCurrency2" type="Payment"/>
