element <nonDeliverableSettlement> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FxCashSettlement
Content:
complex, 2 elements
Defined:
locally witnin FxCoreDetails.model group in fpml-fx-5-3.xsd; see XML source

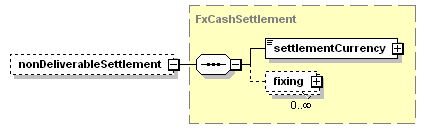

Content Model Diagram
XML Representation Summary
<nonDeliverableSettlement>

Content:
 settlementCurrency, fixing*
</nonDeliverableSettlement>
Content model elements (2):
fixing,
settlementCurrency (defined in FxCashSettlement complexType)
Included in content model of elements (3):
farLeg, fxSingleLeg, nearLeg
Annotation
Used to describe a particular type of FX forward transaction that is settled in a single currency (for example, a non-deliverable forward).
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="nonDeliverableSettlement" type="FxCashSettlement"/>
