element <quote> (local)
Namespace:
Type:
Content:
complex, 1 attribute, 15 elements
Defined:

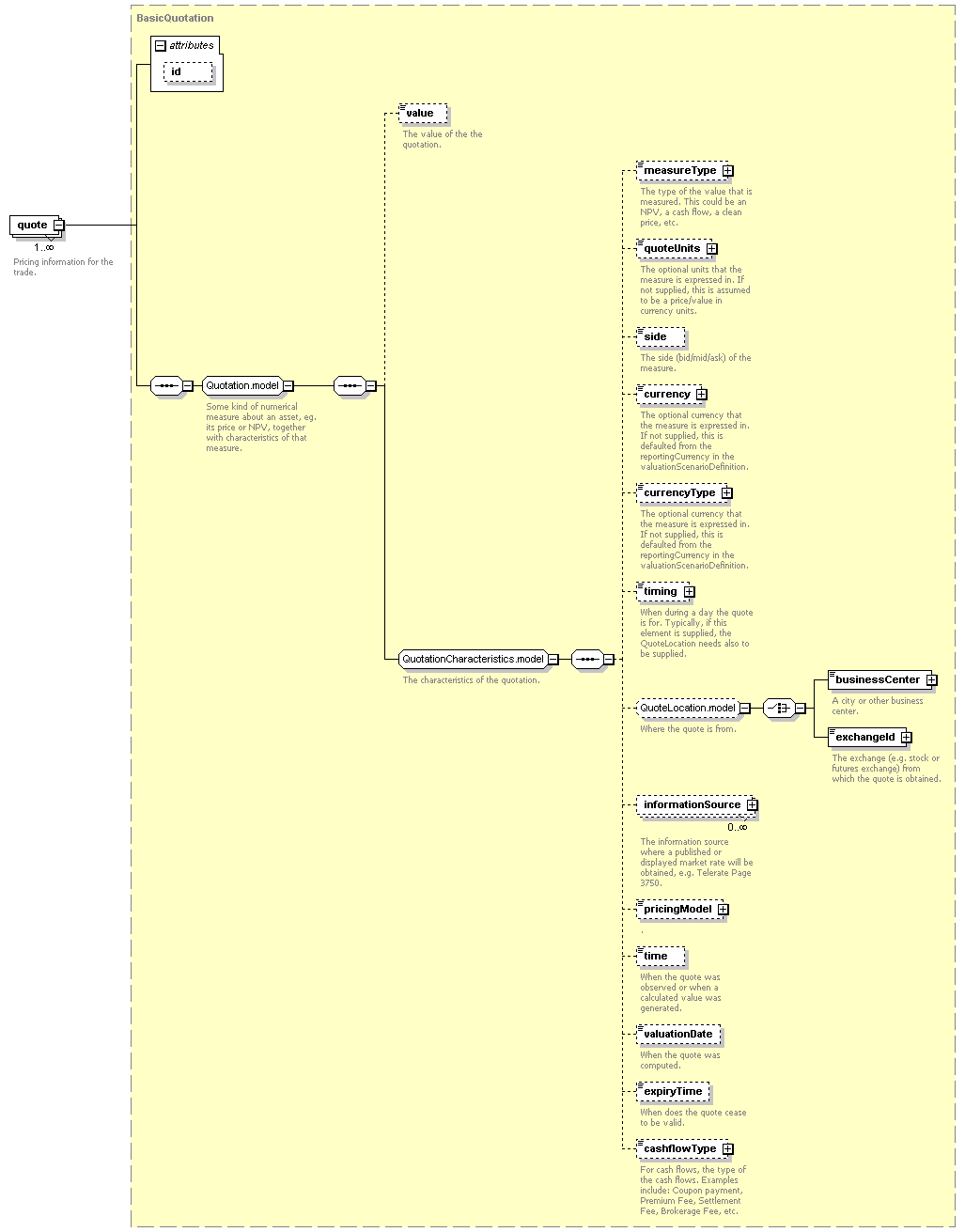

Content Model Diagram
XML Representation Summary
<quote

 =
xsd:ID
    >

Content:
value?, measureType?, quoteUnits?, side?, currency?, currencyType?, timing?, (businessCenter | exchangeId)?, informationSource*, pricingModel?, time?, valuationDate?, expiryTime?, cashflowType?
</quote>
Content model elements (15):
businessCenter (defined in QuoteLocation.model group),
cashflowType (defined in QuotationCharacteristics.model group),
currency (defined in QuotationCharacteristics.model group),
currencyType,
exchangeId (defined in QuoteLocation.model group),
expiryTime (defined in QuotationCharacteristics.model group),
informationSource (defined in QuotationCharacteristics.model group),
measureType,
pricingModel,
quoteUnits,
side (defined in QuotationCharacteristics.model group),
time (defined in QuotationCharacteristics.model group),
timing,
valuationDate (defined in QuotationCharacteristics.model group),
value (defined in Quotation.model group)
Included in content model of elements (8):
clearingConfirmed, clearingRefused, executionAdvice, executionNotification, optionExpirationNotification, requestClearing, requestConsent, tradeChangeAdvice
Annotation
Pricing information for the trade.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="quote" type="BasicQuotation"/>
