element <specifiedExchangeId> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
ExchangeId
Content:
simple, 1 attribute
Defined:
locally within ExchangeIdentifier.model group in fpml-asset-5-7.xsd; see XML source

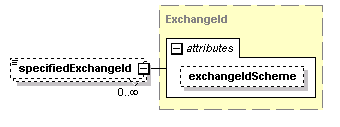

Content Model Diagram
XML Representation Summary
<specifiedExchangeId

 =
xsd:anyURI : "http://www.fpml.org/coding-scheme/external/exchange-id-MIC-1-0"

>

Content:
{ xsd:normalizedString }
</specifiedExchangeId>
Simple Content Detail:
MaxLength:
255
Included in content model of elements (13):
equity,
exchangeTradedContractNearest (in rateOfReturn),
exchangeTradedContractNearest (in variance),
exchangeTradedFund,
extraordinaryEvents (defined in EquityDerivativeLongFormBase complexType),
extraordinaryEvents (defined in NettedSwapBase complexType),
extraordinaryEvents (in equityOptionTransactionSupplement),
extraordinaryEvents (in equitySwapTransactionSupplement),
extraordinaryEvents (in returnSwap),
future,
index,
option,
underlyingEquity
Annotation
A short form unique identifier for a specified exchange. If the element is not present then the exchange shall be default terms as defined in the MCA; unless otherwise specified in the Transaction Supplement.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="specifiedExchangeId" type="ExchangeId"/>
