element <changeInNotionalSchedule> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
NonNegativeAmountSchedule
Content:
complex, 1 attribute, 3 elements
Defined:
locally within TradeLegNotionalScheduleChange.model group in fpml-business-events-5-7.xsd; see XML source

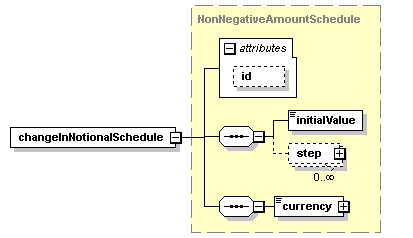

Content Model Diagram
XML Representation Summary
<changeInNotionalSchedule

 =
xsd:ID

>

Content:
</changeInNotionalSchedule>
Content model elements (3):
currency (defined in NonNegativeAmountSchedule complexType),
initialValue (defined in NonNegativeSchedule complexType),
step (defined in NonNegativeSchedule complexType)
Included in content model of elements (2):
novationAmount, sizeChange
XML Source (see within schema source)
<xsd:element name="changeInNotionalSchedule" type="NonNegativeAmountSchedule"/>
