element <commodity> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	Commodity
Content:	complex, 1 attribute, 16 elements
Defined:	locally within CommodityFinancialOption.model group in fpml-com-5-7.xsd; see XML source

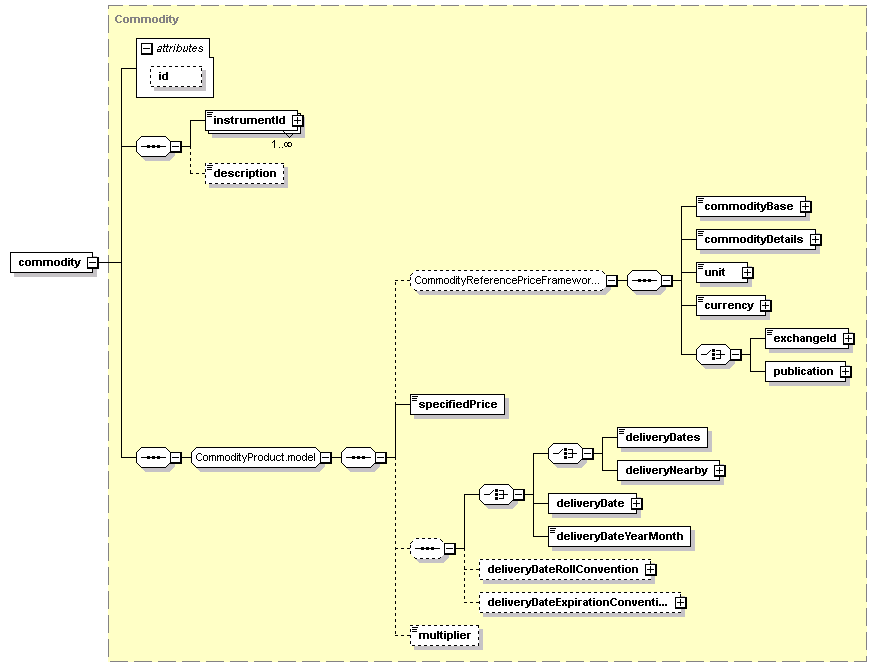

Content Model Diagram

XML Representation Summary

<commodity

xsd:ID

Content:

instrumentId+, description?, (commodityBase, commodityDetails, unit, currency, (exchangeId | publication))?, specifiedPrice, ((deliveryDates | deliveryNearby | deliveryDate | deliveryDateYearMonth), deliveryDateRollConvention?, deliveryDateExpirationConvention?)?, multiplier?

</commodity>

Content model elements (16):

commodityBase,

commodityDetails,

currency (defined in CommodityReferencePriceFramework.model group),

deliveryDate (defined in CommodityProduct.model group),

deliveryDateExpirationConvention,

deliveryDateRollConvention,

deliveryDateYearMonth,

deliveryDates,

deliveryNearby,

description (defined in IdentifiedAsset complexType),

exchangeId (defined in CommodityReferencePriceFramework.model group),

instrumentId (defined in IdentifiedAsset complexType),

multiplier (defined in CommodityProduct.model group),

publication,

specifiedPrice,

unit (defined in CommodityReferencePriceFramework.model group)

Included in content model of elements (1):

commodityOption

Annotation

Specifies the underlying instrument. Usual content is an ISDA Commodity Reference Price Name. The 'commodity' underlyer component is specified using a reference to the 'commodity' asset (see description above at the Commodity Underlyer section).

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="commodity" type="Commodity"/>
