element <relativePaymentDates> (local) | XML Schema Documentation

element <relativePaymentDates> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	CommodityRelativePaymentDates
Content:	complex, 1 attribute, 8 elements
Defined:	locally within CommodityPaymentDates.model group in fpml-com-5-7.xsd; see XML source

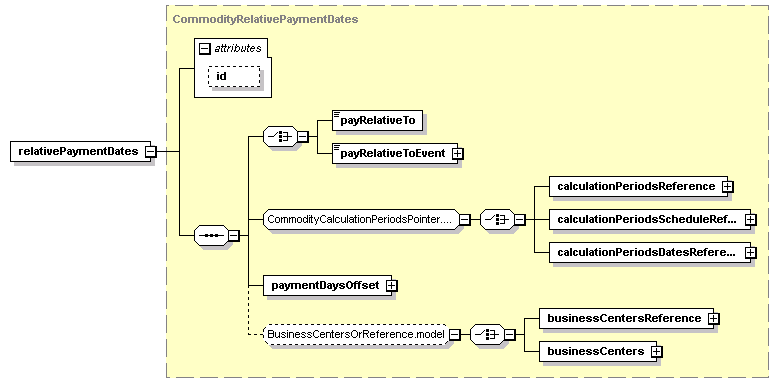

Content Model Diagram

XML Representation Summary

<relativePaymentDates

=

xsd:ID

>

Content:

(payRelativeTo | payRelativeToEvent), (calculationPeriodsReference | calculationPeriodsScheduleReference | calculationPeriodsDatesReference), paymentDaysOffset, (businessCentersReference | businessCenters)?

</relativePaymentDates>

Content model elements (8):

businessCenters (defined in BusinessCentersOrReference.model group),

businessCentersReference,

calculationPeriodsDatesReference,

calculationPeriodsReference,

calculationPeriodsScheduleReference,

payRelativeTo (defined in CommodityRelativePaymentDates complexType),

payRelativeToEvent,

paymentDaysOffset (defined in CommodityRelativePaymentDates complexType)

Included in content model of elements (11):

averagePriceLeg,

commodityInterestLeg,

commodityReturnLeg,

commodityVarianceLeg,

exercise (in commodityBasketOption),

exercise (in commodityDigitalOption),

exercise (in commodityOption),

exercise (in commodityOption),

fixedLeg (in commodityForward),

Annotation

The Payment Dates of the trade relative to the Calculation Periods.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="relativePaymentDates" type="CommodityRelativePaymentDates"/>
