element <commodity> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Commodity
Content:
complex, 1 attribute, 16 elements
Defined:
locally within CommodityUnderlyerChoice.model group in fpml-com-5-7.xsd; see XML source

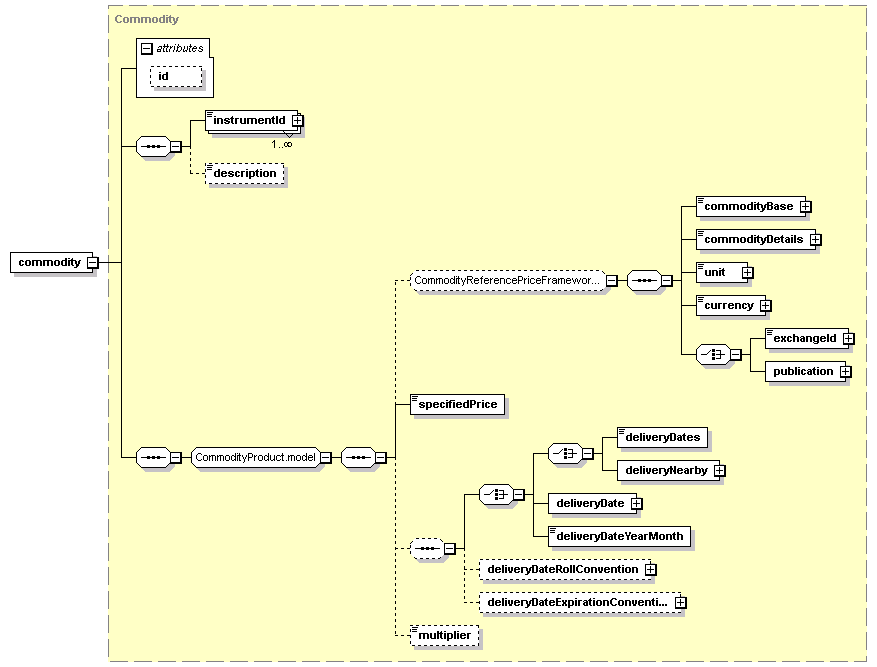

Content Model Diagram
XML Representation Summary
<commodity

 =
xsd:ID

>

Content:
</commodity>
Content model elements (16):
commodityBase,
commodityDetails,
currency (defined in CommodityReferencePriceFramework.model group),
deliveryDate (defined in CommodityProduct.model group),
deliveryDateExpirationConvention,
deliveryDateRollConvention,
deliveryDateYearMonth,
deliveryDates,
deliveryNearby,
description (defined in IdentifiedAsset complexType),
exchangeId (defined in CommodityReferencePriceFramework.model group),
instrumentId (defined in IdentifiedAsset complexType),
multiplier (defined in CommodityProduct.model group),
publication,
specifiedPrice,
unit (defined in CommodityReferencePriceFramework.model group)
Included in content model of elements (2):
commodityReturnLeg, commodityVarianceLeg
Annotation
Describes the swap's underlyer when it has only one asset component.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="commodity" type="Commodity"/>
